HIKVISION DS-KH6310-W(L)

Video Intercom Indoor Station·User Manual
13
4.3 Terminals and Interfaces of DS-KH6310-W/
DS-KH6310

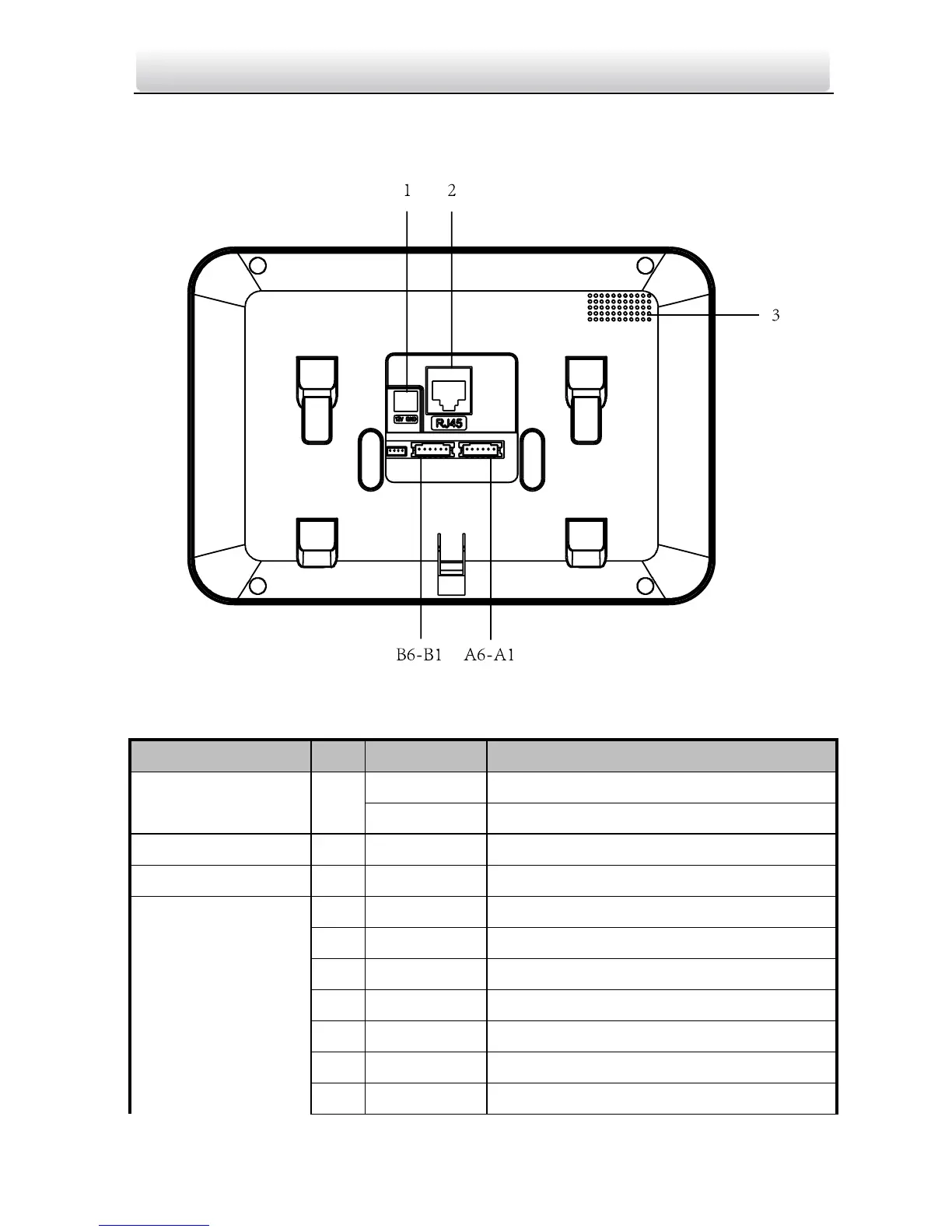

Figure 4-3 Rear Panel of DS-KH6310-W/DS-KH6310
Table 4-3 Descriptions of Terminals and Interfaces
Name
No.
Interface
Description
Power Supply
1
+12V
DC 12V Power Supply + Input
GND
DC 12V GND - Input
Network Interface
2
LAN
Network Interface (Support Private POE)
Loudspeaker
3
Loudspeaker
Ports and Interfaces
A1
GND
Grounding
A2
AOUT
Alarm Relay Output
A3
AIN8
Zone Detector Input Terminal 8
A4
AIN7
Zone Detector Input Terminal 7
A5
AIN6
Zone Detector Input Terminal 6
A6
AIN5
Zone Detector Input Terminal 5
B1
AIN4
Zone Detector Input Terminal 4
