HIKVISION DS-KH8301-WT Quick Start Guide

Video Intercom Indoor Station·Quick Start Guide
25

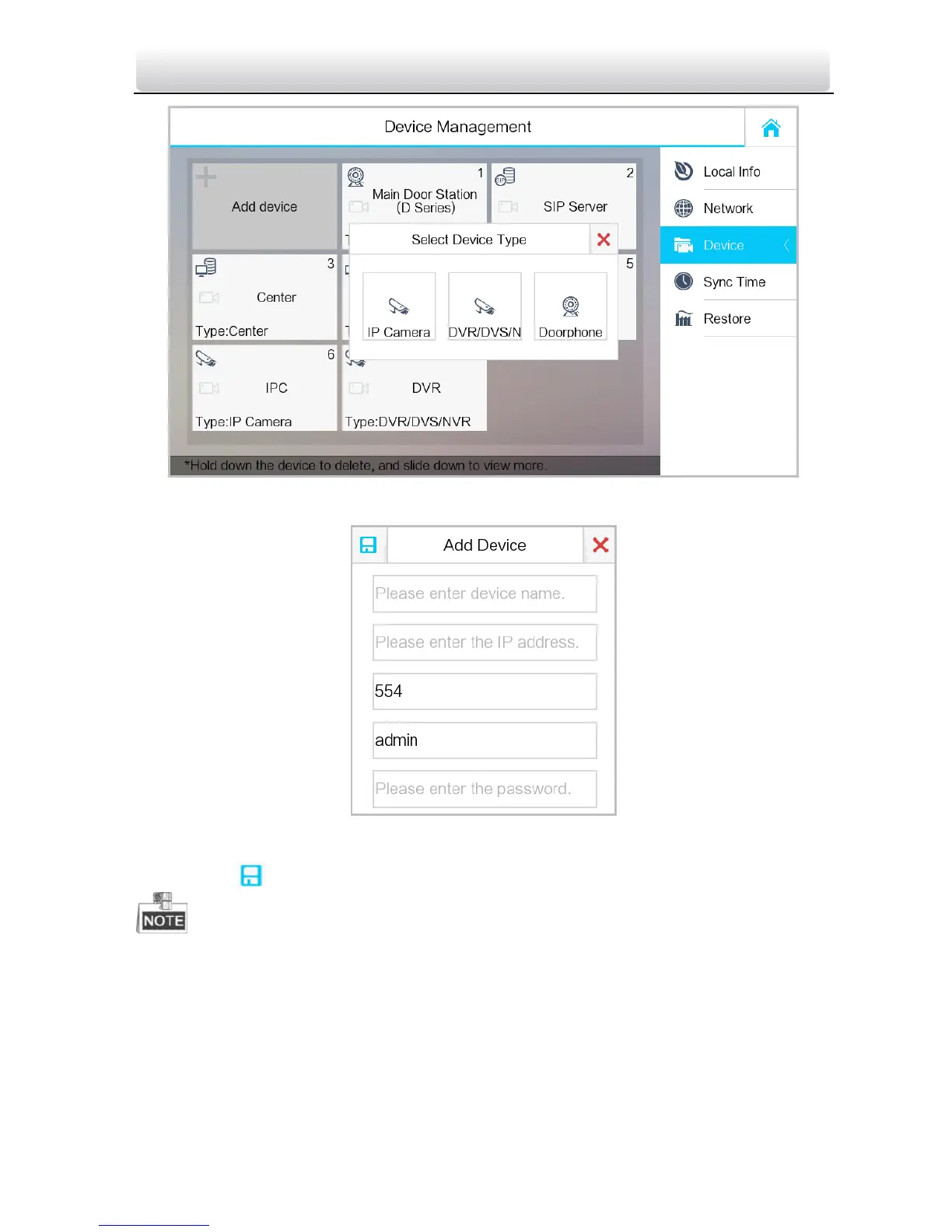

Figure 5-11 Device Selecting Interface (Indoor Station)
4. Press the IP Camera tab to pop up the IP camera adding dialogue box.
Figure 5-12 IP Camera Adding Interface
5. Enter the device name, IP address, Port No., user name, and password.
6. Press the tab to save the settings.
 The default port No. is 554, and the default user name is admin.
 When the IP camera is added successfully, you can get the live view of IP camera on
the live view interface.
 The highest resolution of the IP camera added to the indoor station is 1280 x 720 @
30 fps, and the video compression standard of the IP camera should be H.264.

HIKVISION DS-KH8301-WT Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Proper use	Indoor
Control type	Touch
Product color	White
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit included	No
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Megapixel	0.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
