HIKVISION DS-KIS603-P User Manual

Video Intercom Villa Door Station User Manual
20

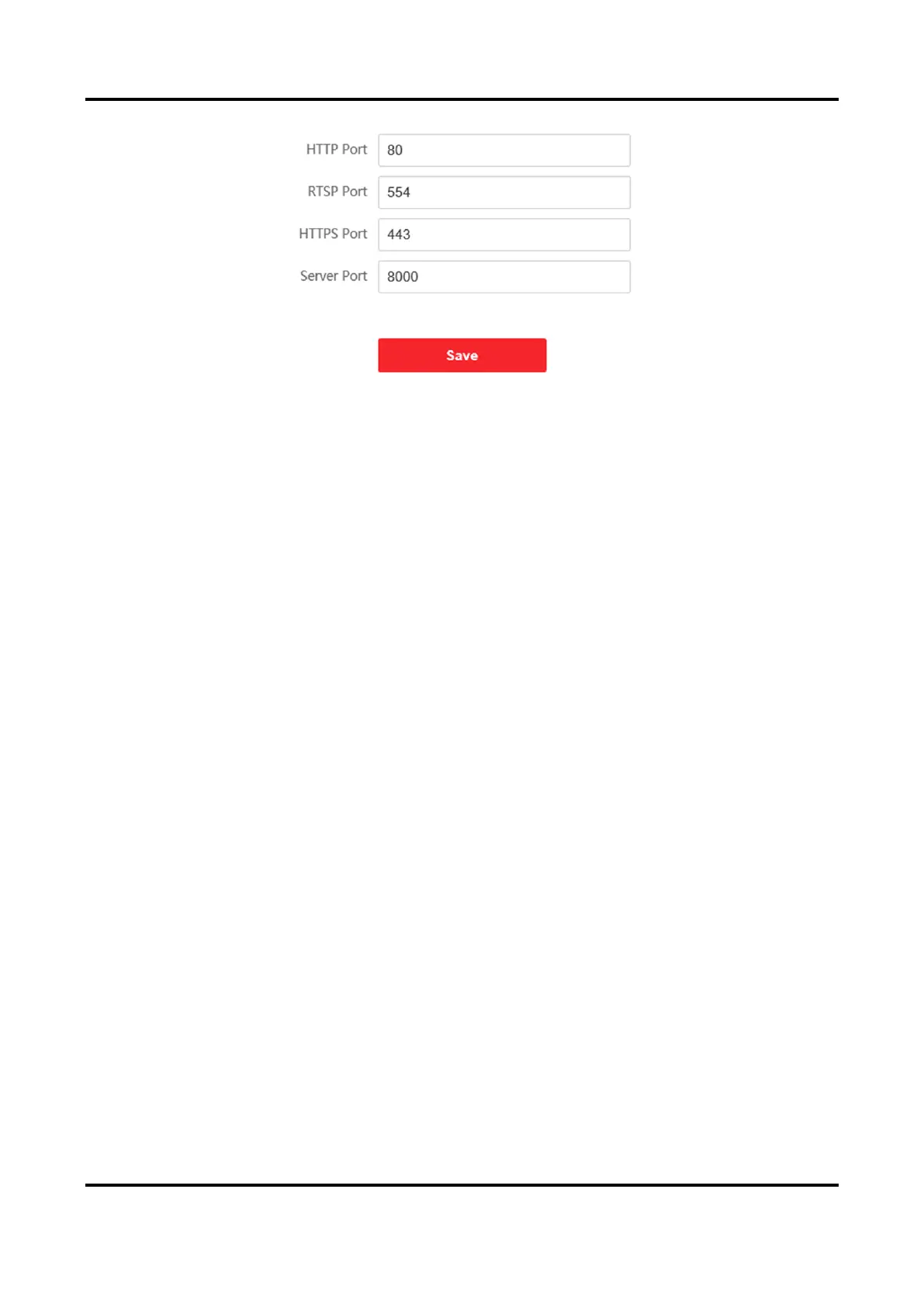

Figure 5-5 Port Settings
2. Set the ports of the device.
HTTP Port
The default port number is 80, and it can be changed to any port No. which is not occupied.
HTTPS Port
The default port number is 443, and it can be changed to any port No. which is not occupied.
RTSP Port
The default port number is 554.
Server Port
The default server port number is 8000, and it can be changed to any port No. ranges from
2000 to 65535.
3. Click Save to enable the settings.
Wi-Fi Settings
Steps
1. Go to Network → Basic Settings → Wi-Fi to enter the settings page.
2. Enable Wi-Fi.
3. Click Add, and set corresponding parameters. and Password of the Wi-Fi.
1) Enter the SSID.
2) Select Working Mode.
3) Select Encryption Type.
4) Click OK.
5) Optional: Click Refresh to get the present information.
4. Click Network Settings, and set corresponding parameters.
5. Select Security Mode.
6. Click Connect.

HIKVISION DS-KIS603-P Specifications

General

Model	DS-KIS603-P
Category	Intercom System
Resolution	1024 x 600
Camera	2 MP HD Camera
Audio Input	Built-in Omnidirectional Microphone
Audio Output	Built-in Loudspeaker
Operating Temperature	-10°C to 55°C (14°F to 131°F)
Supported Protocols	TCP/IP, SIP, RTSP
Display	7-inch TFT LCD
Network Protocol	TCP/IP
Power Supply	12 VDC
Installation	Surface Mount
IR Supplement	IR Supplement
Protection Level	IP65
Power Consumption	<10 W
Humidity	10% - 90% (non-condensing)
Communication Interface	Ethernet
