DS-MP1301 LCD Mobile Monitor
8
Chapter 2 Pin Definition
DS-MP1301 LCD Mobile Monitor connects to the mobile DVR with one four-pin aviation plug which effectively
prevents the plug from falling out. The pin definitions are the same with Mobile DVR’s AV OUT interface. See
Figure 2.1 and Table 2.1 for the detailed definition.
4

3 2
1
AV OUT

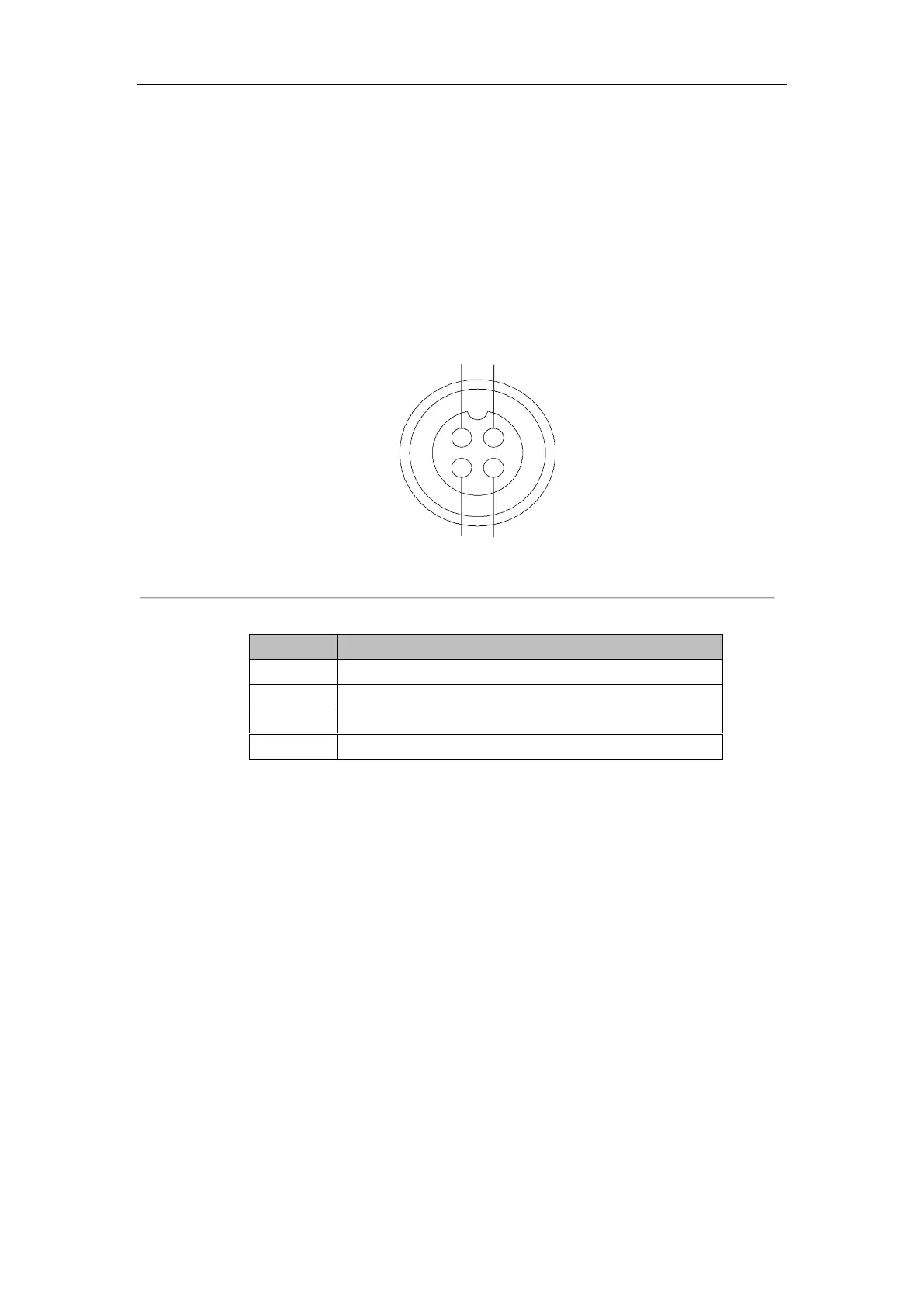

Figure 2. 1 Pin Definition of DS-MP1301
Table 2. 1 AV OUT’s Pin Definition
No.
Description
1
VOUT
2
NC
3
+12V
4
GND
AV OUT
