HIKVISION DS-U102 User Manual

5
2.2 Wall Mounting
Steps:
1. Drill three screw holes in the wall according to the
holes of the mount.
2. Align the screw holes on the mount with that on the
wall, and secure the mount with supplied screws.

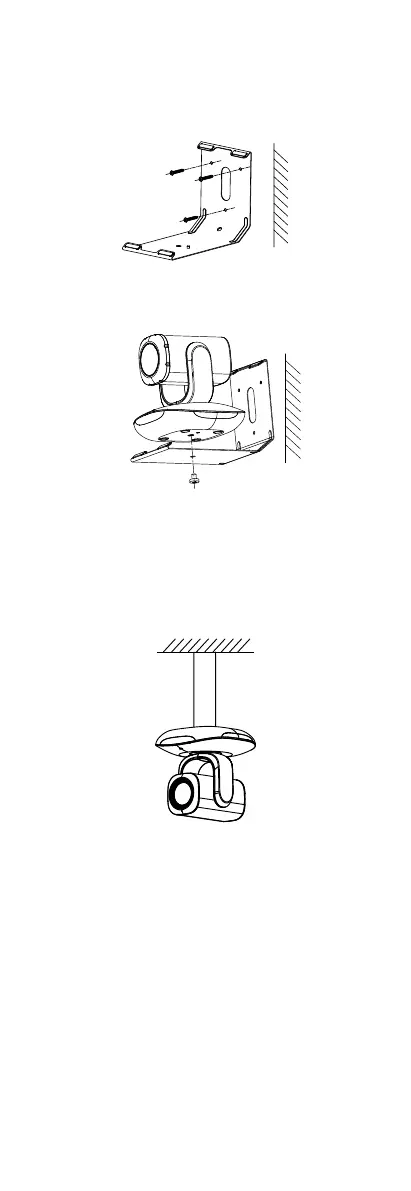

Figure 2-4 Fix the Mount in the Wall
Screw
Figure 2-5 Secure the Camera with the Mount
Repeat steps 3 to 5 of section 2.1 Table Mounting to finish
the installation.
2.3 Pendant Mounting
The device also supports pendant mounting, and the
mount should be purchased separately.
Figure 2-6 Pendant Mounting
