HIKVISION HiLook NVR-104H-D Quick Start Guide

Network Video Recorder Quick Start Guide
9
NVR-100H-D/P and NVR-100MH-D/P Series

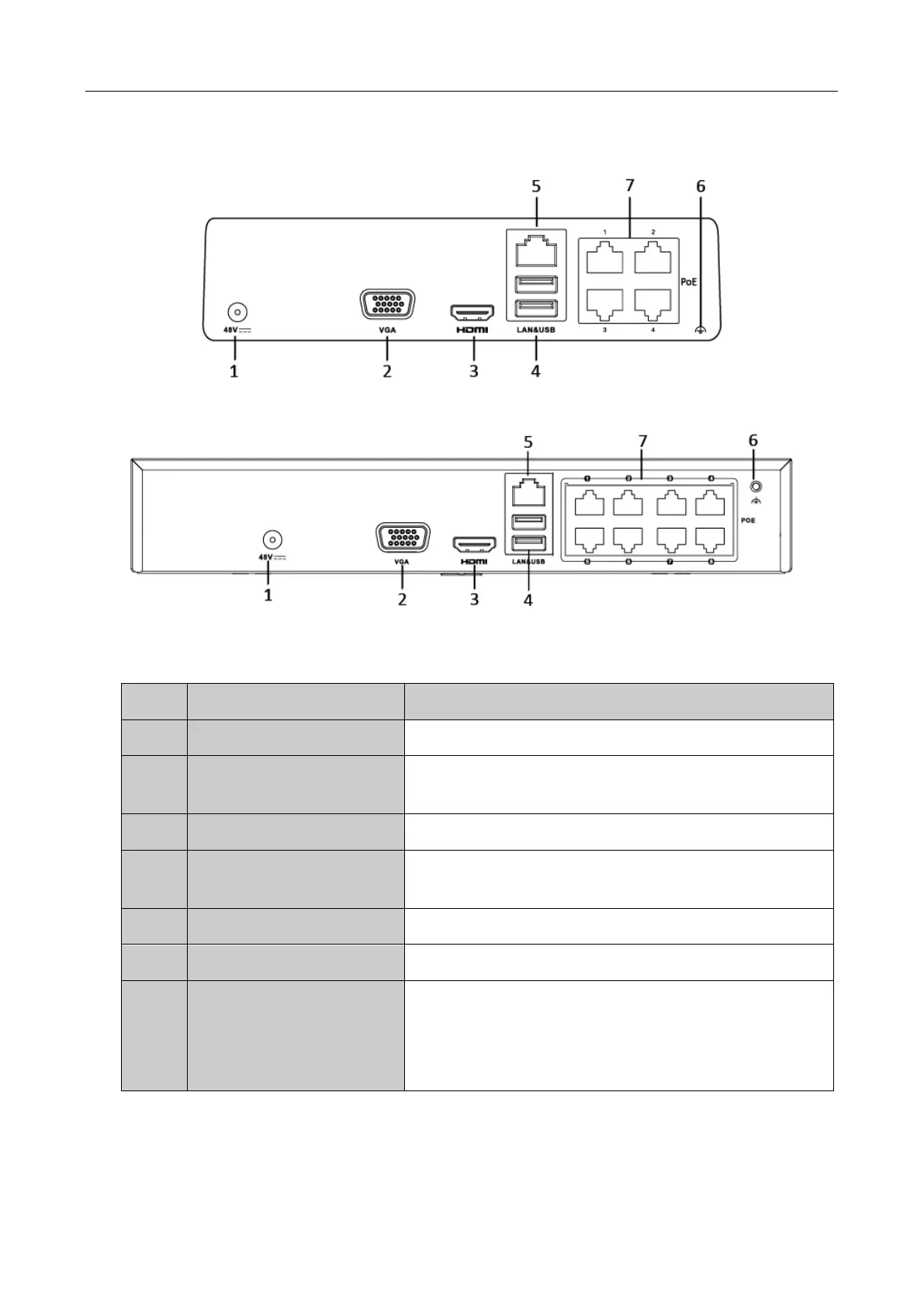

Figure 1-5 NVR-100H-D/P Rear Panel
Figure 1-6 NVR-100MH-D/P Rear Panel
Table 1-3 Description of Rear Panel
No.
Item
Description
1
Power Supply
12 VDC power supply.
2
VGA Interface
DB9 connector for VGA output. Display local video
output and menu.
3
HDMI Interface
HDMI video output connector.
4
USB Interface
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
5
LAN Network Interface
10 /100 Mbps self-adaptive Ethernet interface.
6
Ground
Ground (needs to be connected when NVR starts up).
7
Network Interfaces with
PoE function
Network interfaces for the cameras and to provide
power over Ethernet.
4 interfaces for /4P models and 8 interfaces for /8P
models.
