HIKVISION HiWatch Series User Manual

Digital Video Recorder User Manual
88
Task 1: Enabling the 1080P Lite Mode
Step 1 Go to Menu > Record > Advanced.

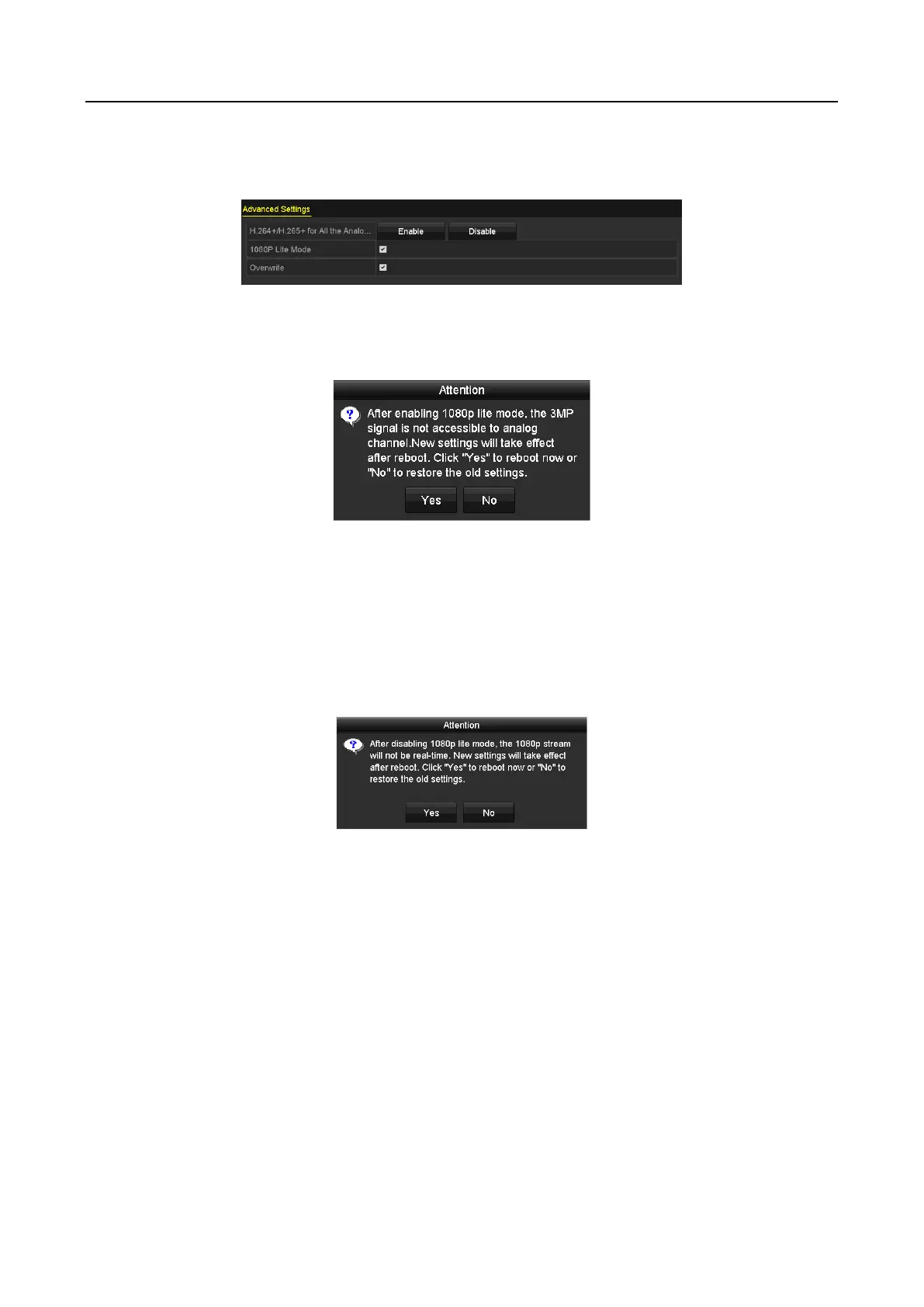

Figure 5-38 Advanced Interface
Step 2 Check the checkbox of 1080P Lite Mode and click Apply to pop up the attention box. After
enabling 1080p lite mode, the 3 MP signal is not accessible to analog channel.
Figure 5-39 Attention
Step 3 Click Yes to reboot the device to have new settings taken effect.
Task 2: Disabling the 1080P Lite Mode
Step 1 Go to Menu > Record > Advanced.
Step 2 Uncheck the checkbox of 1080P Lite Mode and click Apply. The following attention box
pops up.
Figure 5-40 Attention
Step 3 Click Yes to reboot the device to activate the new settings or No to restore the old settings.

HIKVISION HiWatch Series Specifications

General

Brand	HIKVISION
Model	HiWatch Series
Category	Security Camera
Language	English
