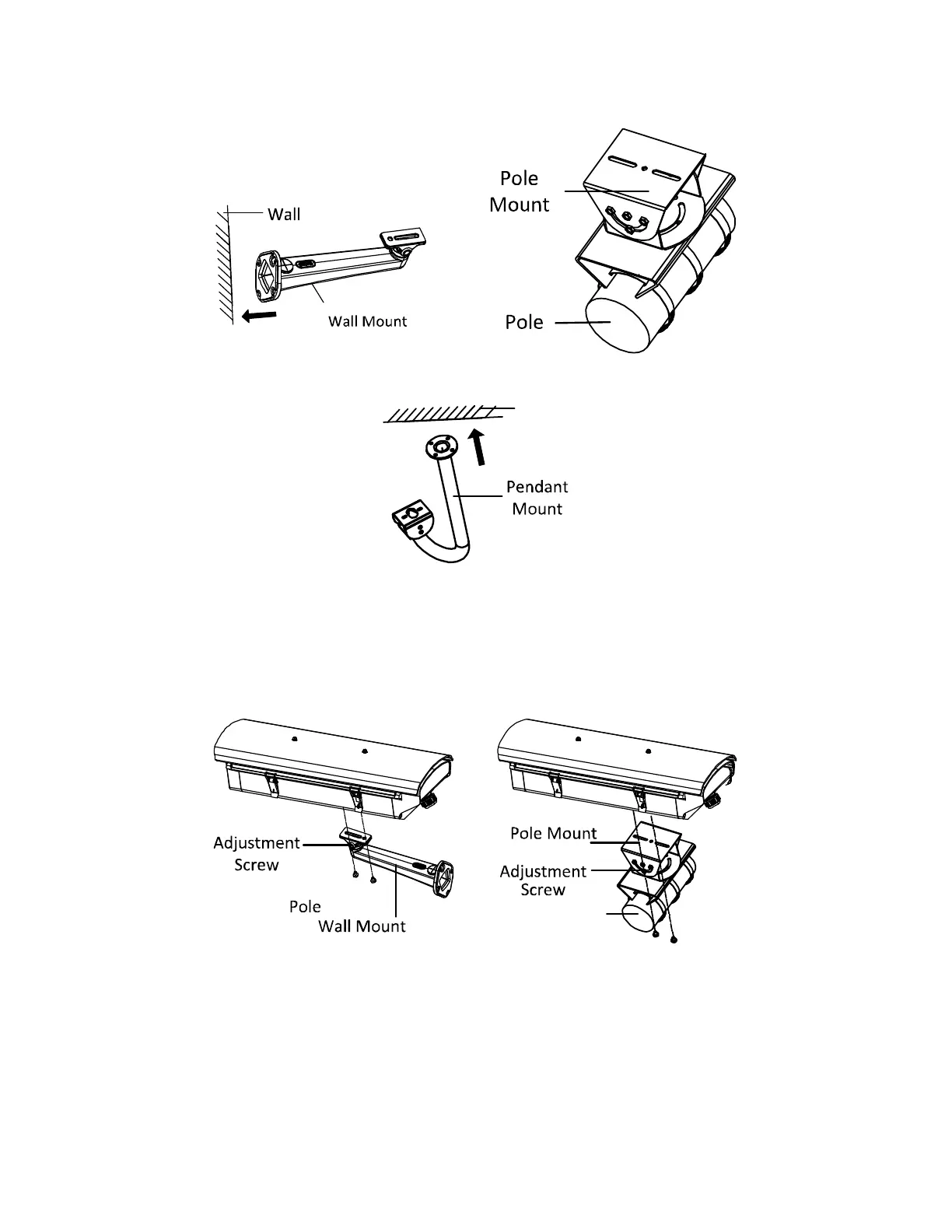

3) Install the bracket onto the wall/ceiling/pole. The wall mounting bracket, pole mounting bracket,
and the pendent bracket are shown in the figures below.
Figure 13, Install the Bracket to Mounting Place (1)
Figure 14, Install the Bracket to Mounting Place (2)
4) Fix the housing (with camera) onto the bracket with the supplied screws.
5) Loosen the adjusting screw to adjust the surveillance angle of the camera. Tighten the screw after
adjustment.
Figure 15, Fix the Housing to Brackets (1)
