HIKVISION iDS-2CD7046G0-AP Quick Start Guide

iDS-2CD7046G0-AP Network Box Camera Quick Start Guide
QSG iDS-2CD7046G0-AP 022321NA 7
1 Appearance Description

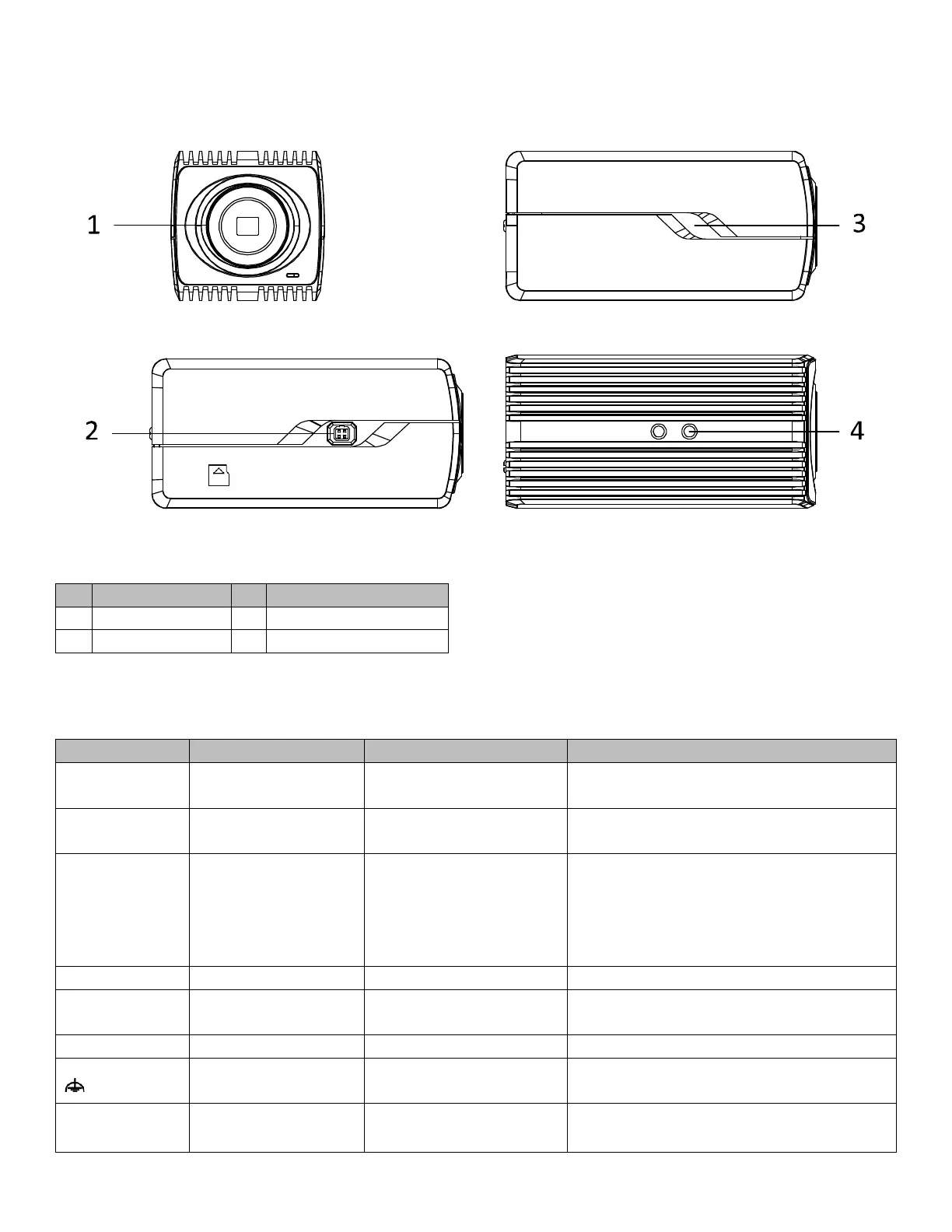

The box camera overview is shown below:
Figure 1, Overview
Description
No.
Description
No.
Description
1
Lens mount
2
Auto-iris interface
3
Power indicator
4
¼-20 UNC screw hole
The interfaces on the real panel are described as follows. The actual interfaces may vary by model.
Rear Panel Interface Description
Item
Description
Item
Description
VIDEO
OUT/CVBS
Analog video output
interface
RS-485 D+ or D- connect to 485
AUDIO IN
Audio interface
input
AUDIO OUT Audio interface output
ALARM IN
Alarm interface,
Input IN1 and GND1,
IN2 and GND2 are
two pairs of alarm
inputs
ALARM OUT
Alarm interface, output 1A and 1B, 2A
and 2B, 3A and 3B are three pairs of
alarm outputs
SFP
Optical interface
LAN (PoE)
Network interface, PoE supported
RESET
One-key button
reset
ABF Auto back focus adjusting knob
DC 12V, AC 24V
Power input
DC12V, GND/DC 12V_OUT
Power output interface
Grounding
MicroSD
SD
Memory card slot
Insert the memory card for local storage
DEBUG
Debugging
interface
