HIKVISION iDS-2VS435-F840-EY User Manual

Network Traffic Speed Dome·Quick Start Guide
1
1 Overview
1.1 Cables
The cable interfaces of the speed dome are shown in Figure 1-1. The cables are
distinguished by different colors. Refer to the labels attached on the cables for
identification.
Network Cable
Audio Cable
Alarm Cable
Video Cable
RS-485 Cable
Power Cord
Optical Fiber

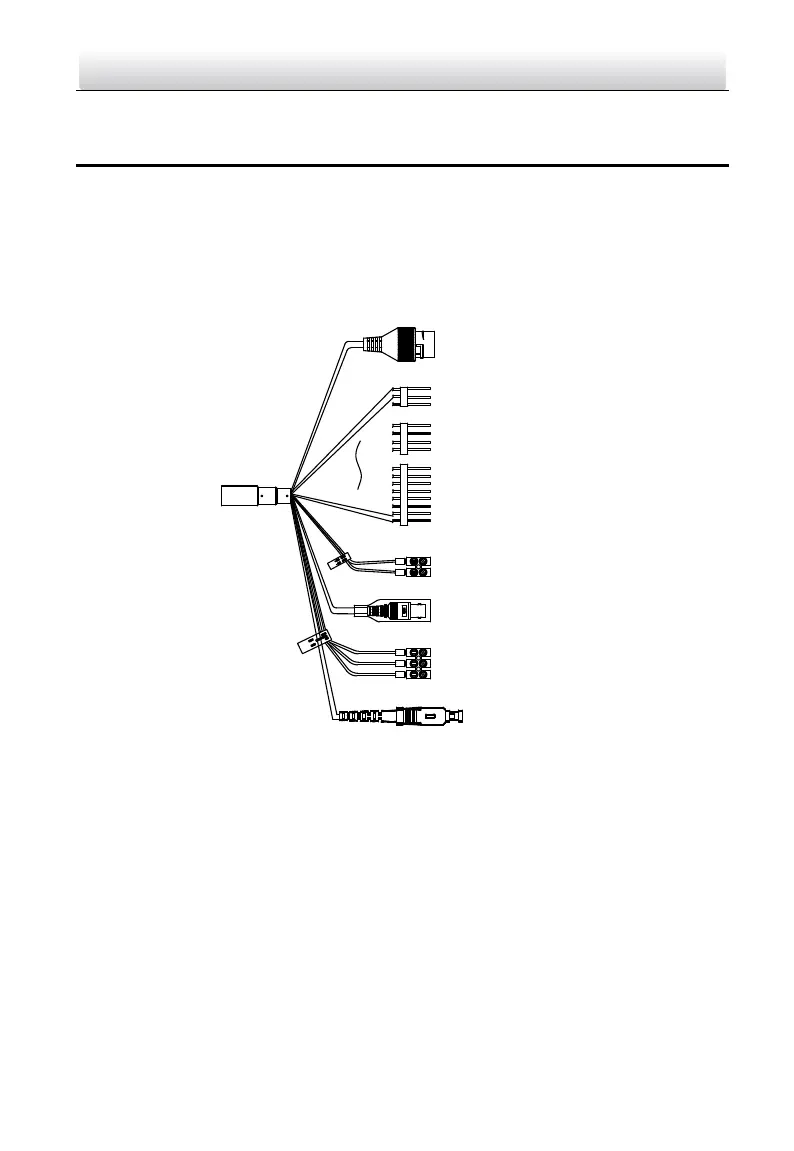

Figure 1-1 Cable Interface
Notes:
 The cables vary depending on different speed dome models.
 Make sure the speed dome is power-off before you connect the cables.
 Water-proof treatment is required for cable connectors. Refer to Section 2.5 and 2.6
for details.
1.2 Memory Card
1.2.1 Type I Speed Dome
The memory card slot is in the speed dome drive as shown in Figure 1-2.
