KB88113 Vandal-Resistant Video Intercom Doorbell User Manual
UM KB8113 Doorbell 021821NA 4

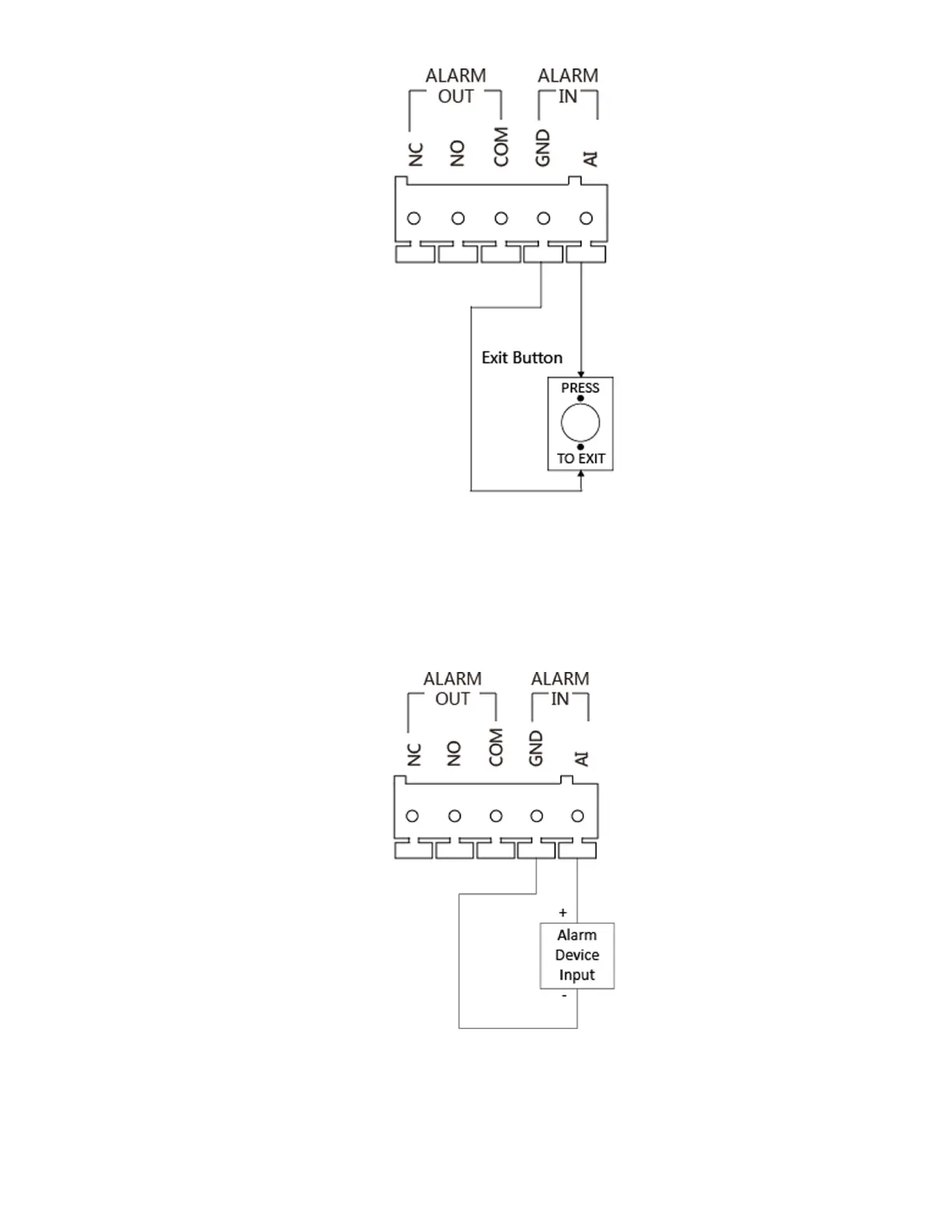

Figure 2-4 Exit Button Wiring
2.2.4 Alarm Device Input Wiring
When you set the output of terminal AI to be custom via Batch Configuration Tool or iVMS-4200
client software or the Web browser, you can connect any alarm input device to the door station via
the terminal AI.
Figure 2-5 Alarm Device Input Wiring

HIKVISION KB8113 Specifications

General

Brand	HIKVISION
Model	KB8113
Category	Intercom System
Language	English
