HIKVISION MV-CA003-30GC User Manual

User Manual of Area Scan GigE Camera
45
Chapter 3 Functions
3.1 Device Control
3.1.1 Name Modification
Run client software and click Device Control. You will see the device type, the
version information, the device serial number and so on. Input the device name in
Device User ID as shown in Figure 3-1.

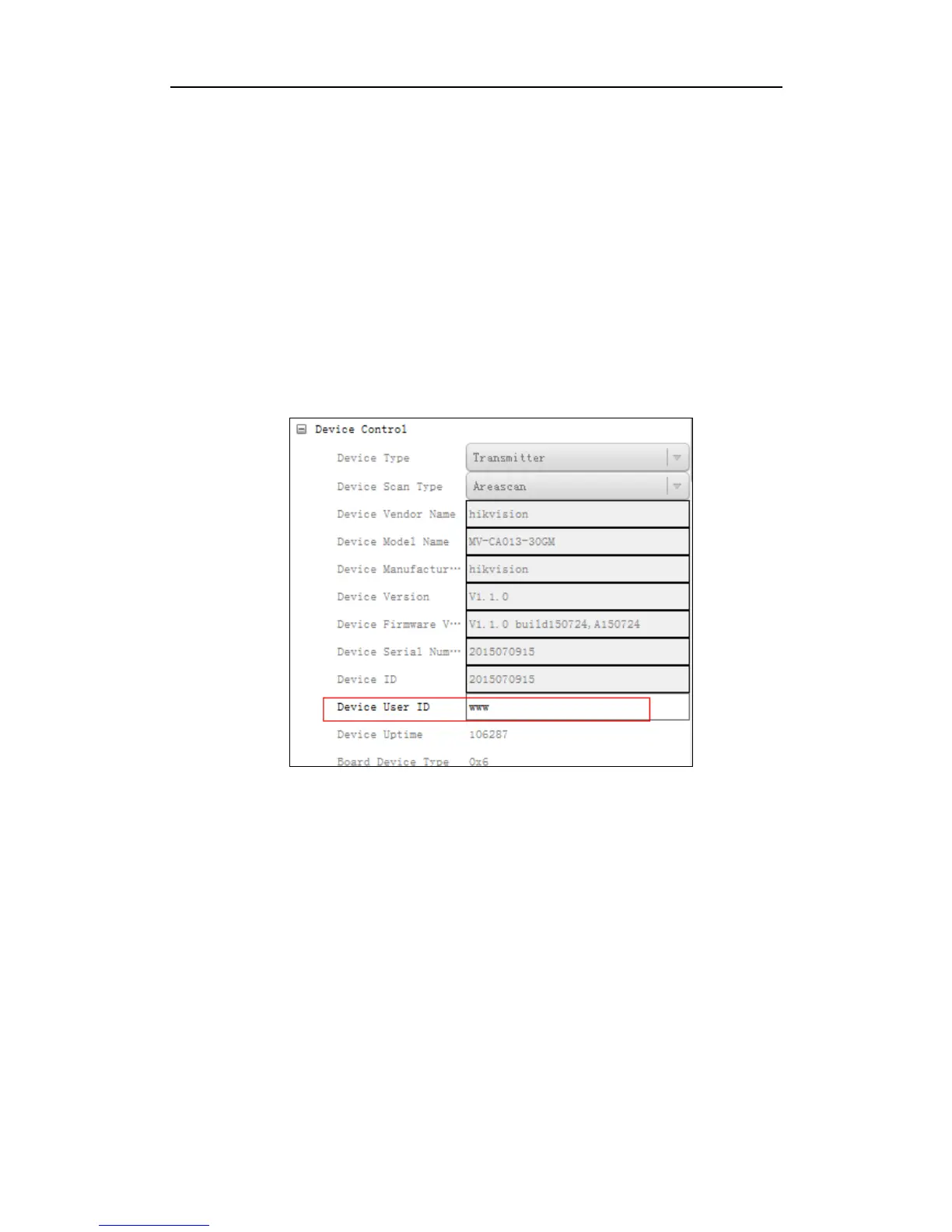

Figure 3-1 Device Name Modification
You can turn on the heartbeat detection mechanism, reset the device and view the
device temperature in Device Control, as shown in Figure 3-2.

HIKVISION MV-CA003-30GC Specifications

General

Model	MV-CA003-30GC
Sensor Type	CMOS
Resolution	2048 x 1536
Frame Rate	30 fps
Lens Mount	C-Mount
Interface	GigE
Power Supply	12 VDC
Sensor Size	1/1.8 inch
