HIKVISION THC-T129-P User Manual

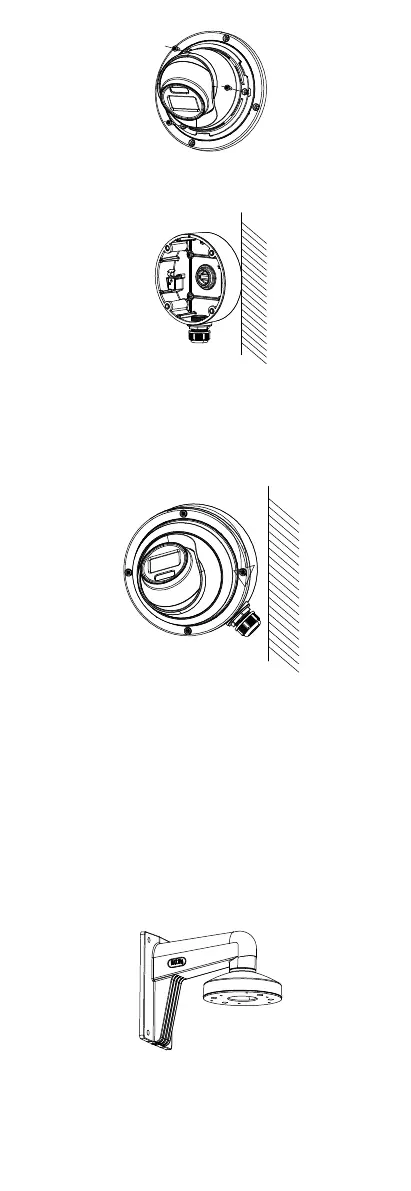

Figure 2-35 Fix the Camera onto Junction Box Cover
7. Secure the junction box body on the wall with four
PA4 × 25 screws.
Figure 2-36 Secure the Junction Box Body
8. Route the cables through the bottom cable hole or
the side cable hole of the junction box and connect
the cables.
9. Combine the junction box cover with its body with
the four screw on the cover.
Figure 2-37 Combine Junction Box Cover with Body
10. Refer to steps 7 and 11 of 2.3.1 Ceiling Mounting
Without Junction Box to adjust the angle and finish
installation.
2.3.3 Wall Mounting
Before you start:
You need to purchase a wall mount in advance.
Steps:
1. Drill Φ 10 mm screw holes in the wall where you
want to install the wall mount.
2. Use four M6 expansion bolts to fix the wall mount
onto the wall.
Figure 2-38 Fix the Wall Mount
3. Turn the trim ring counterclockwise to remove it
from the camera.
