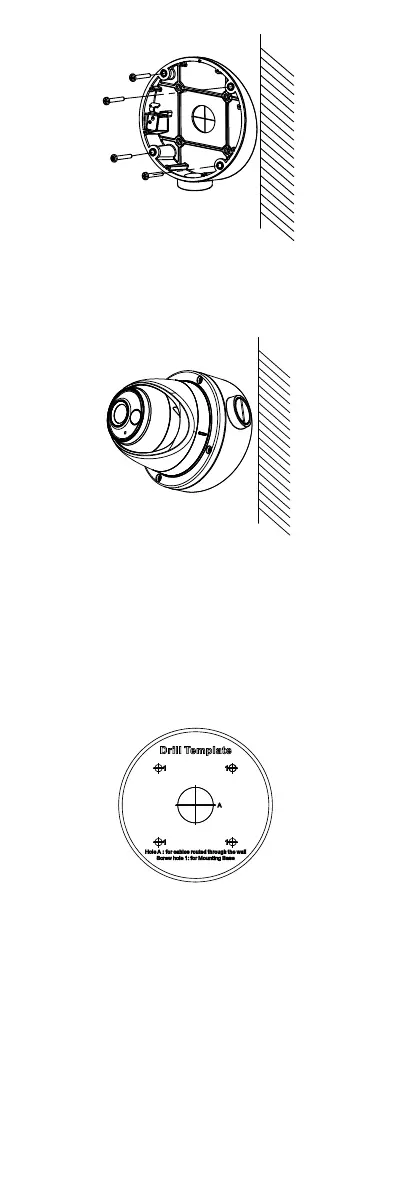

Figure 2-7 Fix the Inclined Ceiling Mount’s Body
6. Combine the inclined ceiling mount’s cover with its
body with supplied screws.
7. Repeat steps 5 to 8 of the 2.1 Ceiling/Wall Mounting
without Junction Box to complete the installation.
Figure 2-8 Fix the Camera to the Inclined Ceiling Mount
2.3 Ceiling/Wall Mounting with Junction Box
Before you start:
You need to purchase a junction box separately.
Steps:
1. Paste the drill template on the ceiling/wall.
2. Drill screw holes and the cable hole (optional) in the
ceiling/wall according to the holes of the drill
template.
Figure 2-9 Drill Template of the Junction Box
Note:
Drill the cable hole, when adopting the ceiling outlet
to route the cable.
3. Take apart the junction box, and align the screw
holes of the turret camera’s mounting base with
those on junction box’s cover.
4. Fix the mounting base on junction box’s cover by
supplied screws.
To Next Page
