Digital Video Recorder Quick Start Guide
6

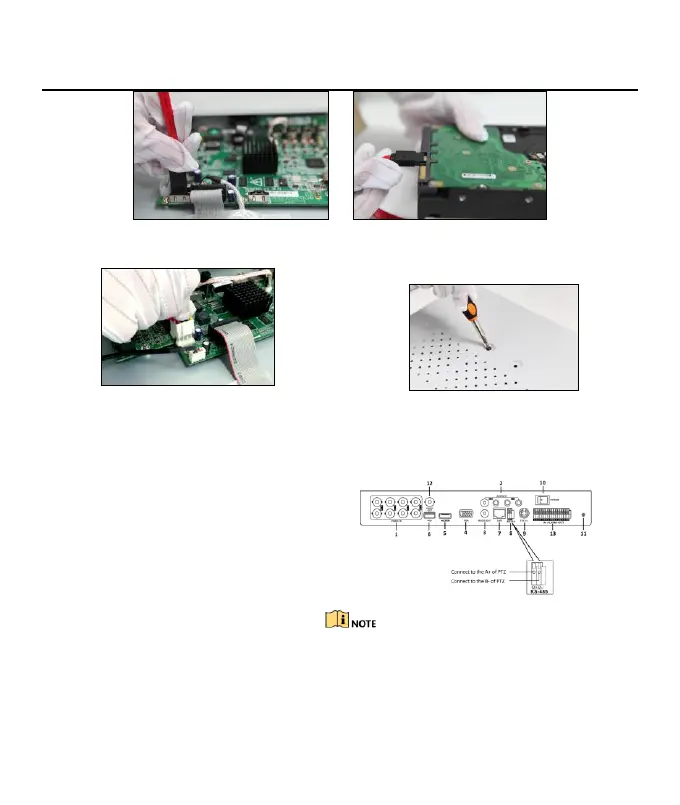

Figure 2-2 Connect Data Cable
Step 3 Connect the power cable to the HDD.
Figure 2-3 Connect Power Cable
Step 4 Place the HDD on the bottom of the
device and then fasten the screws on the
bottom to fix the HDD.
Figure 2-4 Fix Hard Disk
Step 5 Re-install the cover of the DVR and fasten screws.
2.3 RS-485 and Controller Connection
To connect PTZ to the DVR:
Step 1 Disconnect pluggable block from the
RS-485 terminal block.
Step 2 Press and hold the orange part of the
pluggable block, insert signal cables
into slots, and release the orange
part. Ensure signal cables are in tight.
Step 3 Connect A+ on PTZ to D+ on terminal
block and B- on controller to D- on
terminal block. Fasten stop screws.
Step 4 Connect pluggable block back into
terminal block.
Typical Connection:
Figure 2-5 Controller Connection A
Make sure both the controller and DVR are grounded.
