Wiegand Camera ·Operation Manual
11

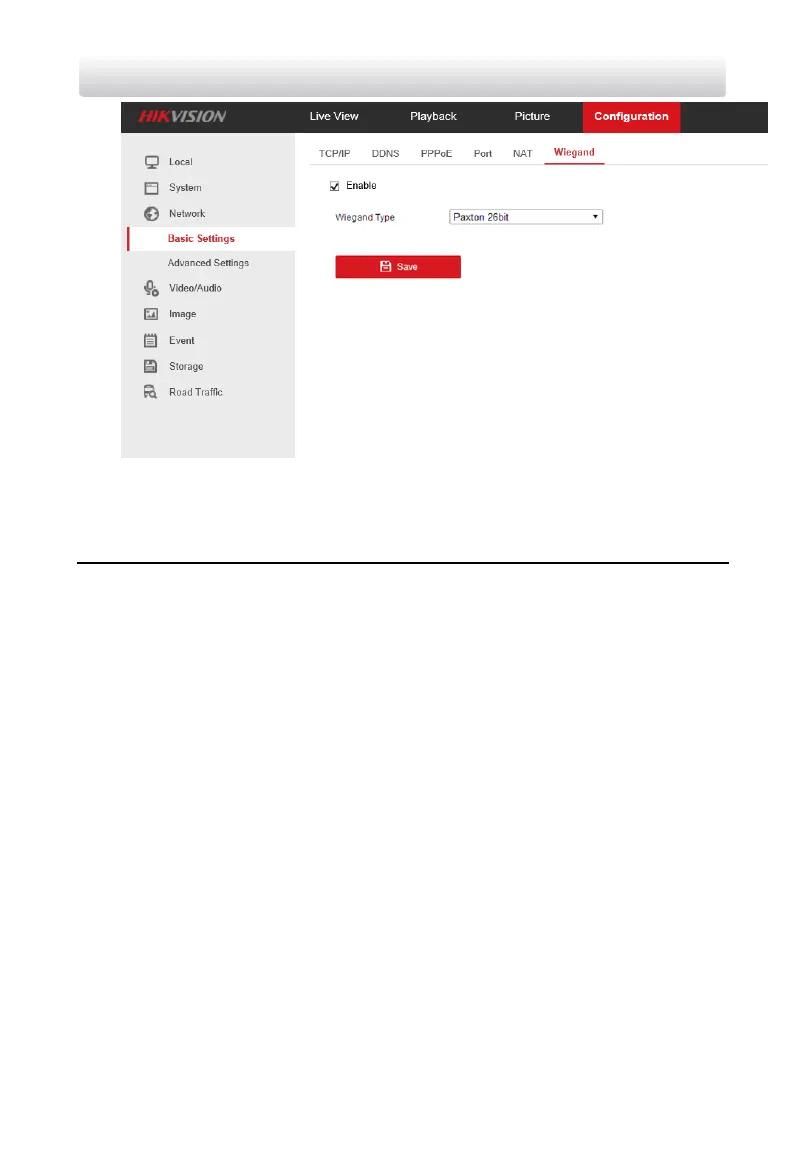

Figure 3-9 Settings Interface
4 Appendix
4.1 Paxton Configuration
4.1.1 Connect Net2 ACU
Steps
1. The connections for the ANPR Camera and Reader port using a Belden reader
cable (as per Paxton specification) on the Net2 ACU are as follows:
Blue wire: D1 at ANPR – Clock/D1 on Net2 ACU Reader Port.
Yellow wire: D0 at ANPR – Data/D0 on Net2 ACU Reader Port.
Black wire: GND at ANPR – 0v on Net2 ACU Reader Port.
