HIKVISION XE61 Series - Cable Description

Network Dome Camera·Quick Start Guide
14
14
2.2 Cable Description
1
2
3
4
5
6

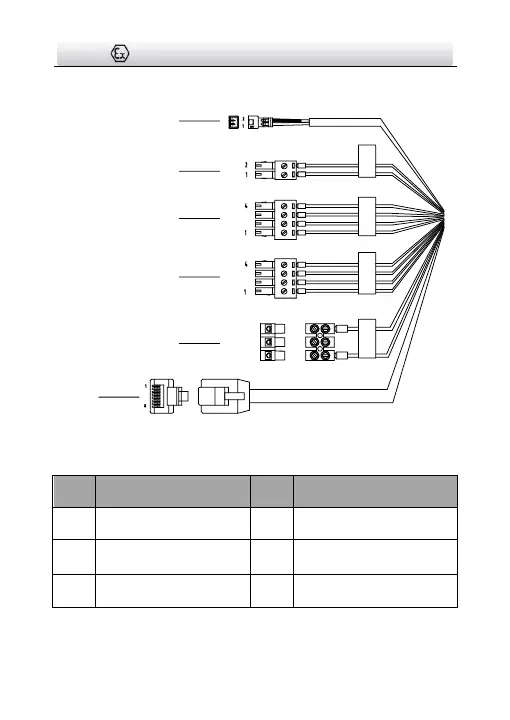

Figure 2-2 Overview of Cables
Table 2-1 Description of Cables
No.
Description
No.
Description
1
Video out (CVBS)
4
Audio input and output
2
RS-485
5
Power cord (9 to 16 VDC)
3
Alarm input and output
6
RJ45 Ethernet interface
