15
Maintenance
Replacing the Foot Pedal
Remove the power head from the upper housing.
Remove the cover from the power head and the

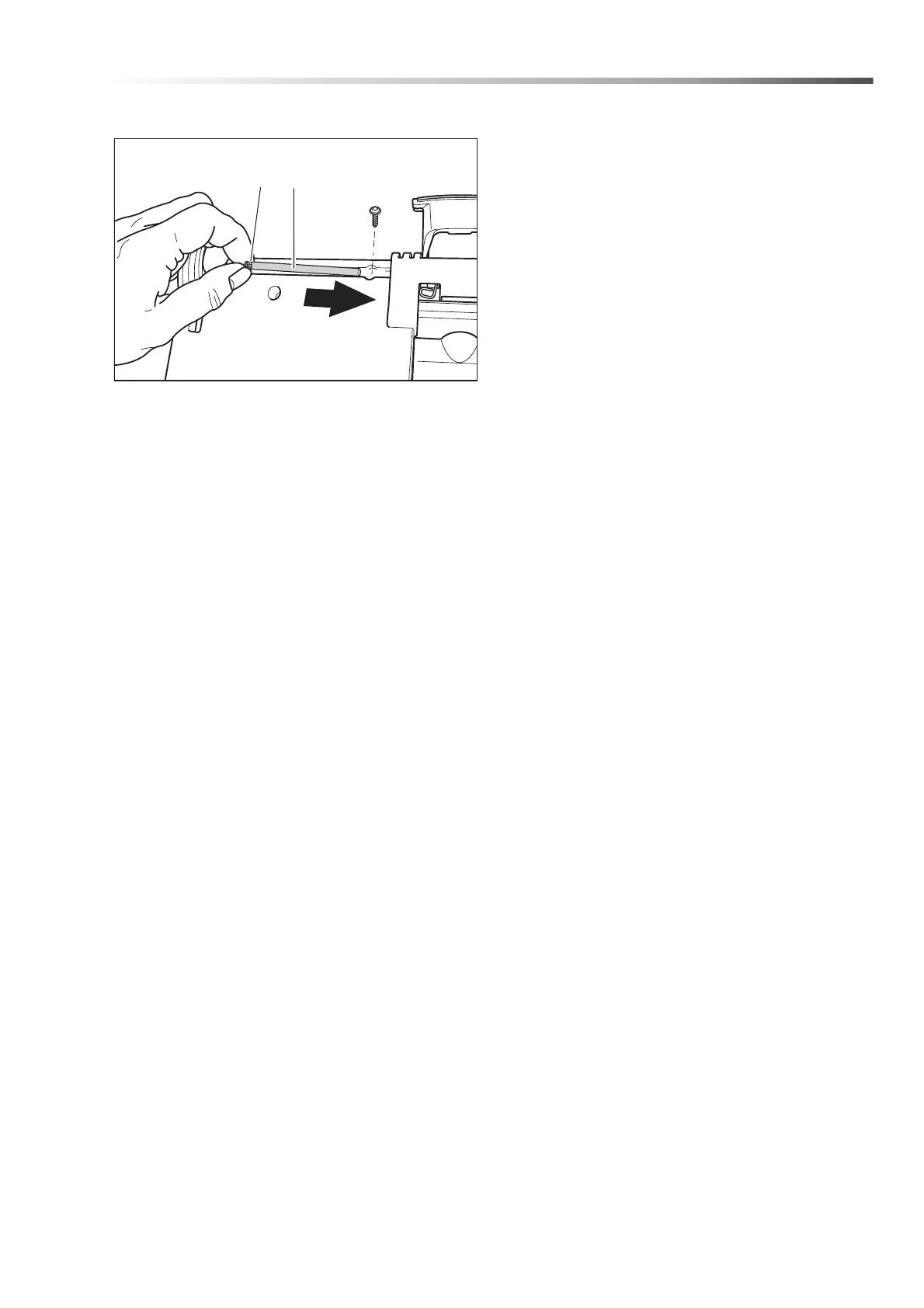

retaining screw. Insert a screw driver in the notch on
the axle and slide the axle out. Remove and replace
foot pedal. Re-assemble.
NOTE: Ensure that at re-assembly, the axle (0)
notch (40) is visible as shown.
HIL 56082 / HIL 56083 - Operators Manual - Trident V14D / V18D
