14 English

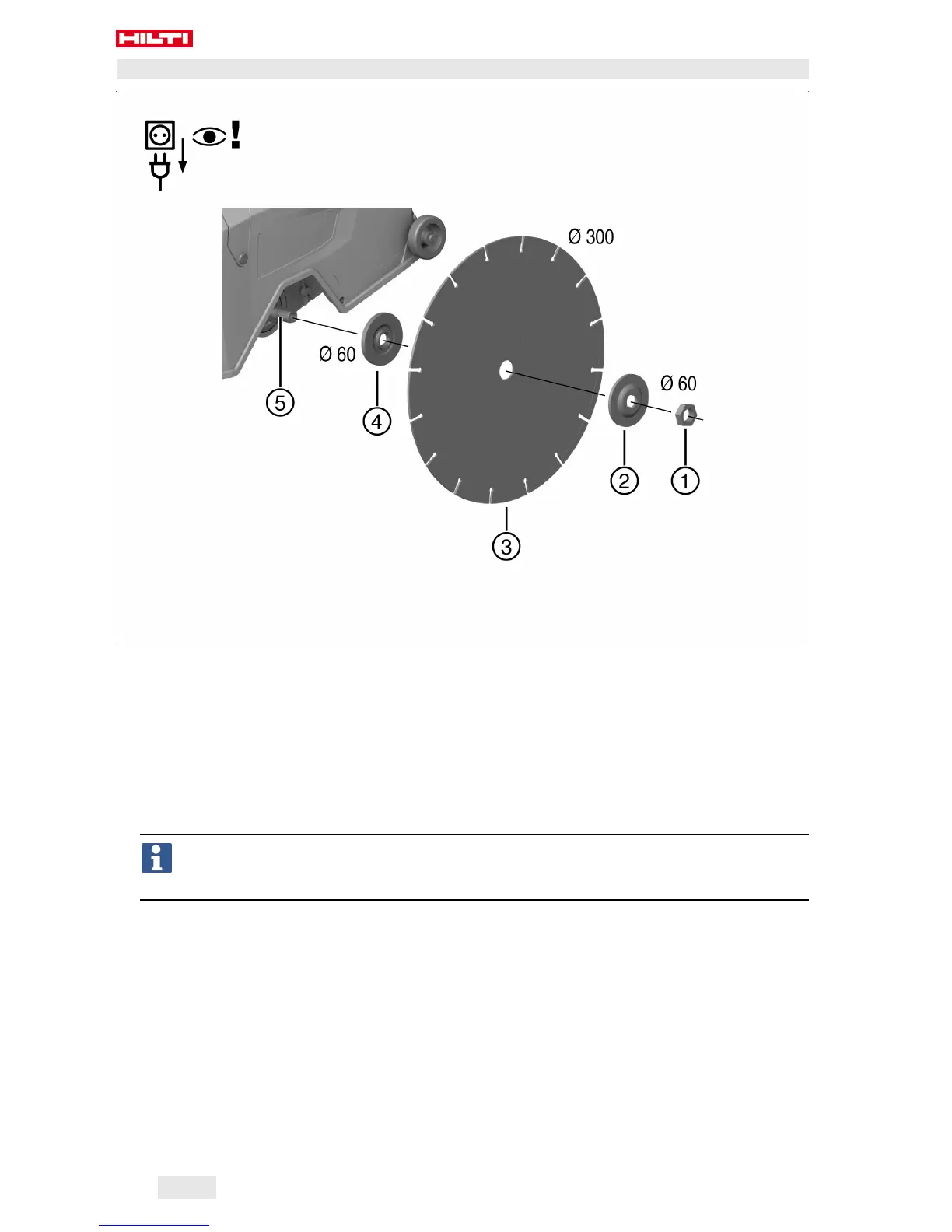

5.2 Fitting a diamond cutting disc
@
M16 × 1.5 clamping nut
;
Ø 60 mm clamping flange
=
Diamond cutting disc
%
Ø 60 mm reversible flange
&
Arbor
1. Observe the instructions concerning correct selection of suitable cutting discs → page 12 and the
dimension and format specifications for diamond cutting discs → page 12.
2. Disconnect the mains plug from the power outlet.
3. Clean the clamping flange and the clamping nut.
4. Fit the 60 mm diameter reversible flange onto the arbor the right way round, so that it is no longer free to
rotate.
The 60 mm diameter reversible flange is used for mounting cutting discs with an arbor hole size of
22.2 mm or 25.4 mm. Check which side of the reversible flange fits the arbor hole in the cutting
disc. The reversible flange must center the cutting disc.
5. Place the diamond cutting disc on the reversible flange.
6. Fit the 60 mm diameter clamping flange and the clamping nut.
7. Press the arbor lockbutton and hold it in this position.
8. Use the wrench to tighten the clamping nut securely and then release the arbor lockbutton.
9. Check to ensure that the arbor lockbutton has disengaged and that the arbor is again free to rotate.
Printed: 02.02.2018 | Doc-Nr: PUB / 5398464 / 000 / 00
