3 Description

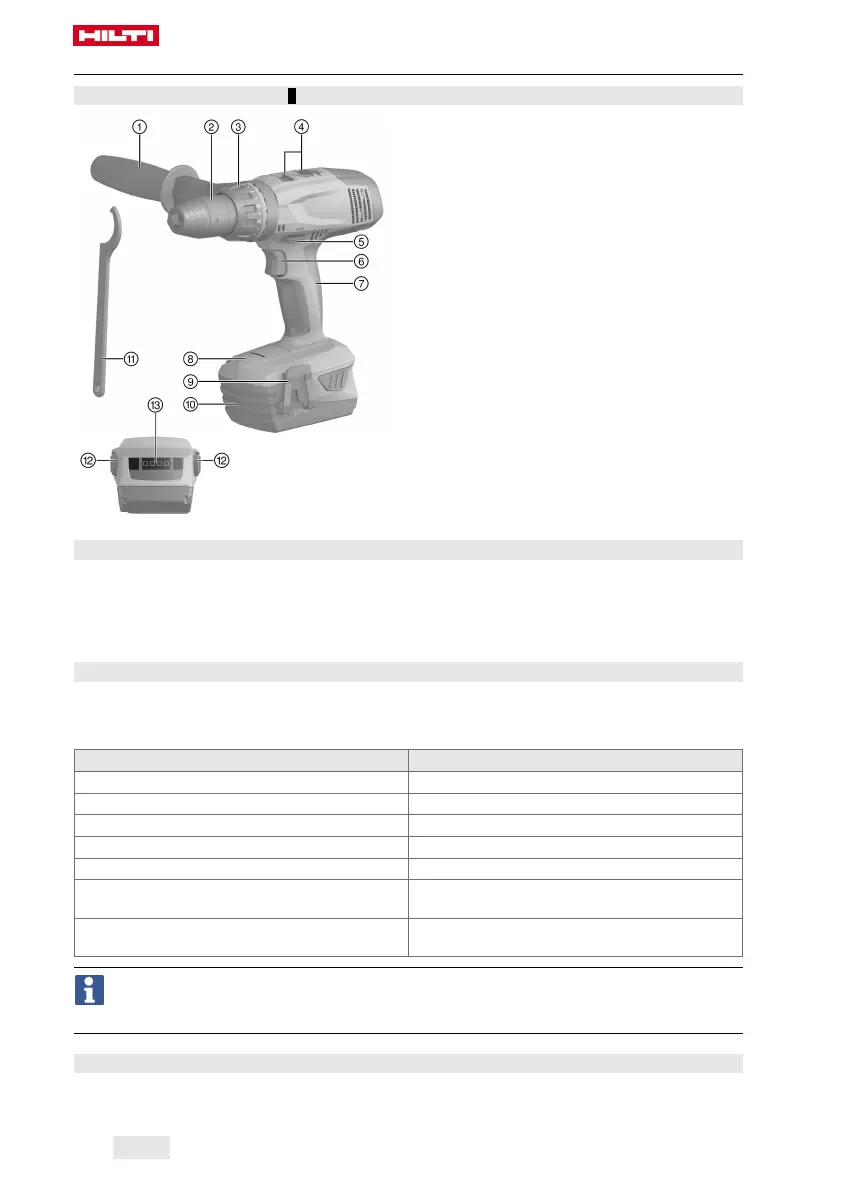

3.1 Overview of the product 1
@
Side handle
;
Keyless chuck
=
Torque setting ring
%
Gear selector switch
&
Forward/reverse switch with switch-on inter-
lock
(
Control switch (with electronic speed control)
)
Grip
+
Light to illuminate the work area
§
Belt hook (optional)
/
Liion battery
:
Hook wrench
∙
Battery release button
$
Battery charge-status and fault indicator
3.2 Intended use
The product described is a hand-held cordless drill/driver. It is designed for driving and removing screws
and for drilling in steel, wood and plastic.
▶ Use only Hilti lithiumion batteries of the B 22 series with this product.
▶ Use only Hilti battery chargers of the C4/36 series for charging these batteries.
3.3 Li-ion battery state of charge display
The charge state of the Li-ion battery and malfunctions of the power tool are indicated by the display on
the Liion battery. The charge state of the Liion battery is displayed after pressing one of the two battery
release buttons.
Status Meaning
4 LEDs light up. State of charge: 75 % to 100 %
3 LEDs light up. State of charge: 50 % to 75 %
2 LEDs light up. State of charge: 25 % to 50 %
1 LED lights up. State of charge: 10 % to 25 %
1 LED flashes, the power tool is in working order. State of charge: < 10 %
1 LED flashes, the power tool is not in working or-
der.
The battery has overheated or is completely dis-
charged.
4 LEDs flash, the power tool is not in working or-
der.
The power tool is overloaded or has overheated.
Battery charge state cannot be displayed while the control switch is pressed and for up to 5 seconds
after releasing the control switch.
Follow the instructions in the "Troubleshooting" section.
3.4 Items supplied
Drill / driver, side handle, hook wrench, operating instructions
