FRONT OF THE DISPLAY MODULE | PAGE 5
2. FRONT OF THE DISPLAY MODULE
The display module has a backlit display and various LEDs for monitoring the
status of the control unit. It also has keys that allow the user to control and
program the control unit.

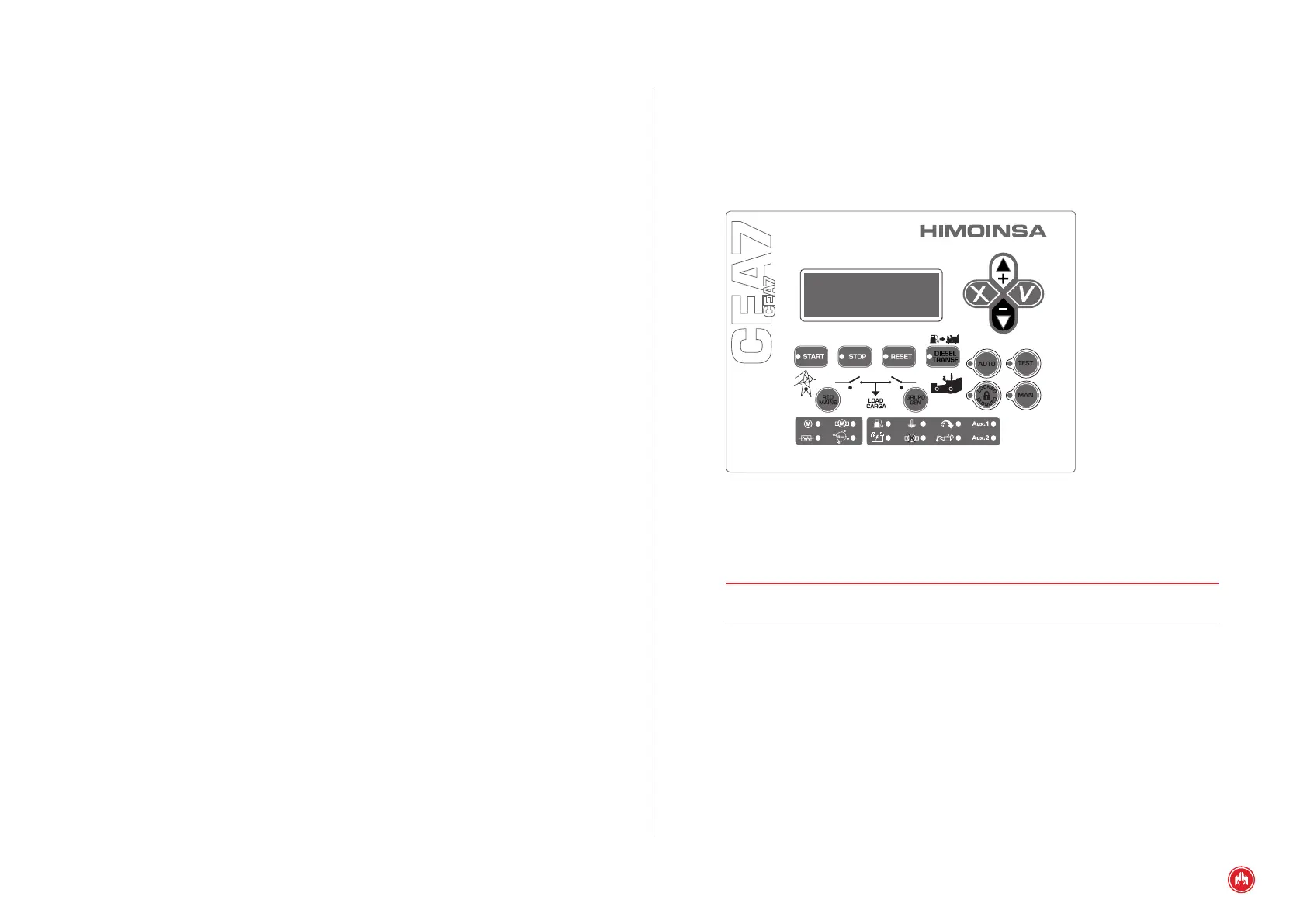

Fig.1
CEA7 display module
1. Backlit display 4 lines by 20 digits.
NOTE
The display goes into low power mode (backlight off) after 10 minutes have
passed without any keystroke.
2. Control unit buttons:
• Buttons for control unit operating mode.
• Control unit command buttons.
• Display buttons.
• Activation button for genset contactor and network contactor.
3. Status LEDs:
• ENGINE status LEDs.
• ALARMS LEDs.
• CONTACTORS status LEDs.
