COMMISSIONING | PAGE 13
Fig. 4 Fig. 5

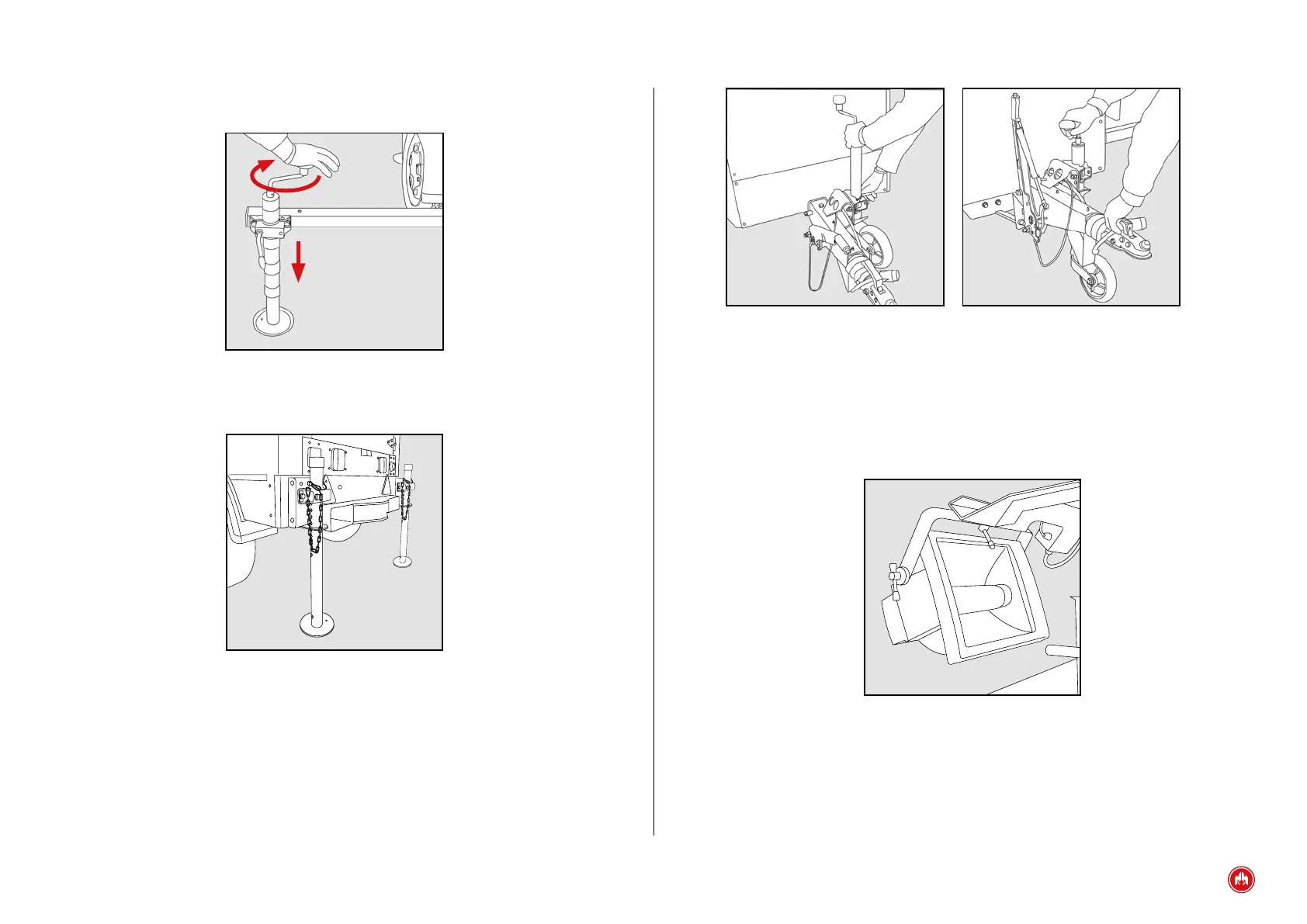

4.3 ADJUSTMENT OF THE SPOTLIGHTS
Before raising the tower it may be necessary to adjust the lamps.
The spotlights are already installed in the tower and can be oriented easily
thanks to small levers that allow easy mobility through 180º.
Fig. 6
• Turn the jack handle clockwise to start levelling the trailer until it is in
rm contact with the ground and the trailer is as level as possible.
Fig. 2
• Only the legs are removed from the front, the rear legs are xed and
are easily adjusted with the corresponding pins.
Fig. 3
• Once the 4 support legs have been adjusted and the tower is level
with the help of the sprit level, lower the jockey wheel until it rests on
the working surface.
