Himoinsa STANDARD - Raising the Tower Mast

COMMISSIONING | PAGE 14
PULL
LOCK
PULL
RELEASE
Fig. 8
• Proceed to raise the mast by pressing the up button located on the
control panel.
Fig. 9
• The mast has a lock which xes the orientation of the spotlights.
Whenever you want to change the orientation you must remove the
lock by moving the lever to the RELEASE position, turning the mast to
the desired position and then xing the mast with the lever, putting it
into the LOCK position.
PULL
LOCK
PULL
RELEASE
Fig. 10

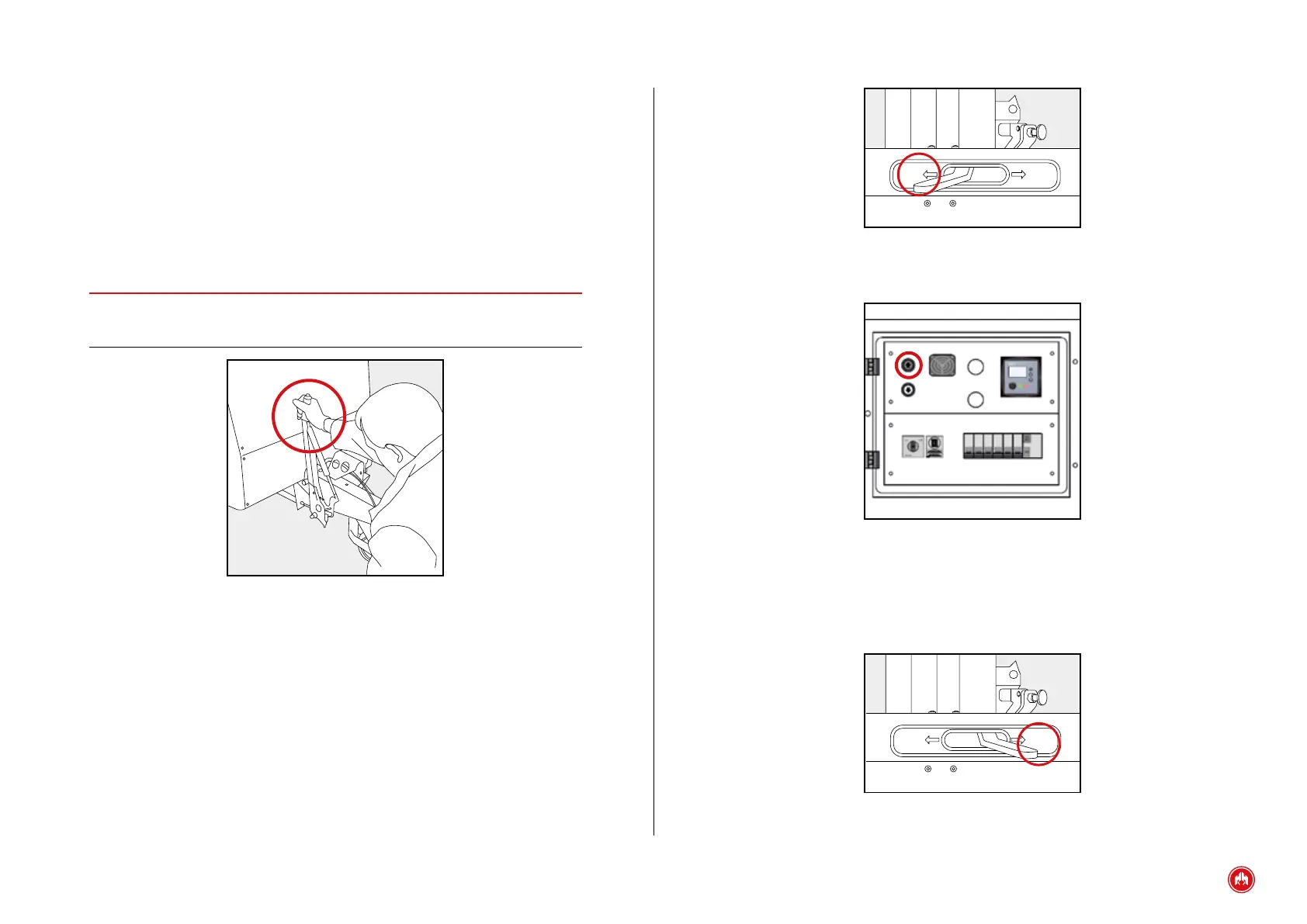

4.4 RAISING THE TOWER
The trailer must be levelled with the outriggers extended before raising the tower
mast and must remain extended while the tower is up. Failure to level the trailer or
extend the outriggers will severely reduce the stability of the unit and could allow
the tower to tip and fall.
Do not start the unit if the insulation on the electrical cord is cut or worn through.
Bare wires in contact with the mast or frame may energize the trailer and cause
electrocution. Repair or replace cord immediately.
IMPORTANT
In order to proceed with the raising of the mast it is essential to rst apply the
handbrake. If the handbrake is not engaged, for safety reasons, the mast will not
rise.
Fig. 7
• Check the mast cables for excessive wear and tear or damage. Check
the electrical cord for damage.
• Make sure the area behind the unit is clear before raising the mast to
the vertical position.
• Make sure the mast is in the locked position.
