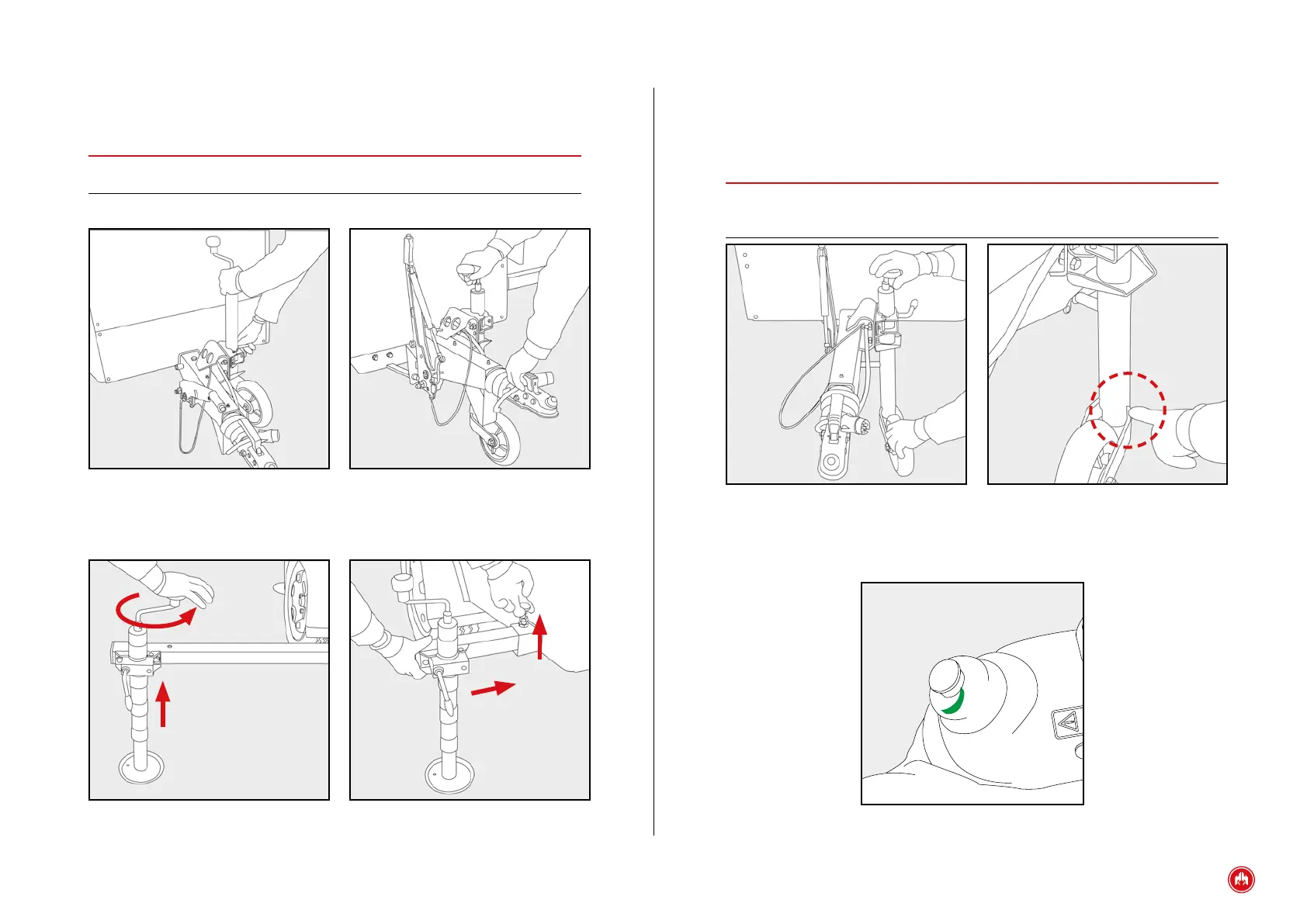

5.4 ROAD TRAVEL
Wind the jockey wheel up for road travel.
NOTE
Make sure when raising the jockey wheel that ts perfectly, this will avoid turns
during the transport which could cause damage to the machine. Fig. 7 & 8.
Place the hitch ball positioned with the towing vehicle.
ATTENTION!
Fig. 7 Fig. 8
Place the hitch ball positioned with the vehicle.
When you see a green mark on the safety button the anchoring will be perfect.
Fig. 9
5.3 RETRACT TELESCOPIC LEGS
IMPORTANT
To proceed with the retraction of the telescopic legs make sure that the jockey
wheel is lowered and xed to the surface. Fig. 3 & 4.
Fig. 3 Fig. 4
Then raise, retract and stow the legs in travel position, with the locking pins
facing upwards. Fig. 5 & 6.
Fig. 5 Fig. 6
