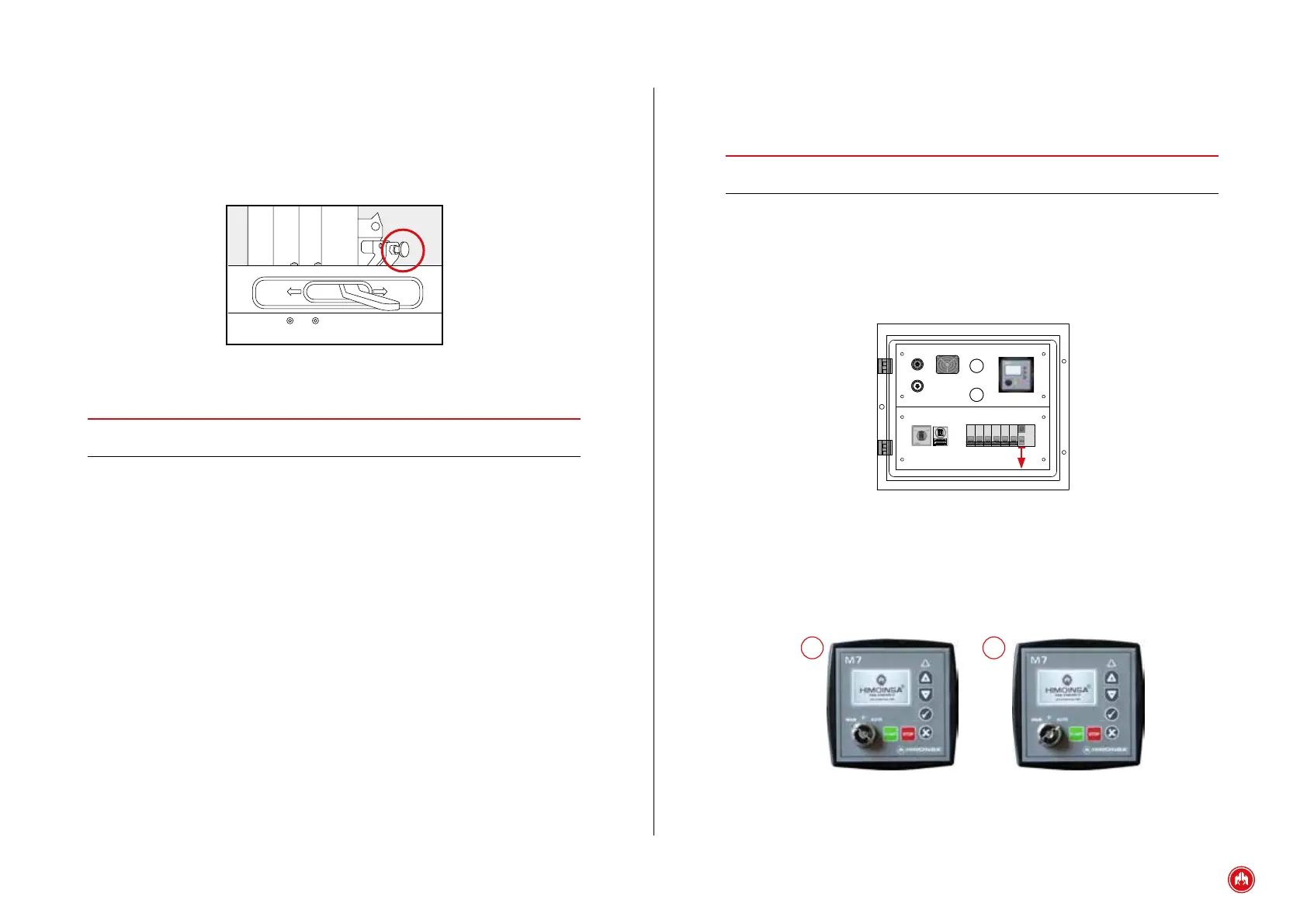

COMMISSIONING | PAGE 15
4.5 GENSET STARTING
VERY IMPORTANT
Never start the gen-set with load, that is, check that all the circuit breakers are
switched off.
Before starting the engine:
• Check the fuel level.
• Check the oil level.
• Check the coolant level.
• Make sure that the main circuit breaker is OFF.
CUADRO MANUAL PARA TORRE DE ILUMINACION
ESQUEMA ELÉCTRICO DE CONTROL "M7"
Y PROTECCIÓN MAGNETOTÉRMICA
LIGHTING TOWER MANUAL START CONTROL PANEL
"M7" CONTROL AND THERMAL MAGNETIC
PROTECTION ELECTRIC DIAGRAM
DE 10 AMPERIOS
FROM 10 AMPERES
*WARNING*
MAKE SURE ALL THE POWER UNITS ARE OFF
BEFORE START THE GENSET!!
www.himoinsa.com
1 2 3 54 76 8 9 10 1211 1413 15 16
Telf. 968 191 128
APPROVED:
OLD CODE:
NEW CODE:
DESIGN:
REVISED/
NAME:
DATE:
SIGNATURE
DESCRIPATION:
Nº P.:
REVISION:
SCALE:
CODE:
CTRA.MURCIA-SAN JAVIER KM 23.600 C.P. 30730 - MUR CIA - ESPAÑA
1/17/2014
1/17/2014
mm
03
Miguel Utrillas
CCAC16AB20002-R0
Fig.12
Once the above has been veried you can now start the gen-set.
(A) Manual start
(B) Free voltage contact start
A B
Fig.13
• To return the spotlights to their original position, you must set the
lever to the RELEASE position, turn the mast to the original position
and secure it again (LOCK).
• For safety reasons, once the work is nished, it is always recommend-
ed that the mast is kept in the original locking position that was given
at the factory, thus avoiding damage to the machine.
PULL
LOCK
PULL
RELEASE
Fig.11
IMPORTANT
Whenever the brake is deactivated, the mast, for security reasons, will descend
automatically.
