Ring/Network coupling
Redundanz L2P
Release
5.0
04/09
5.2
Preparing a Ring/Network coupling
71

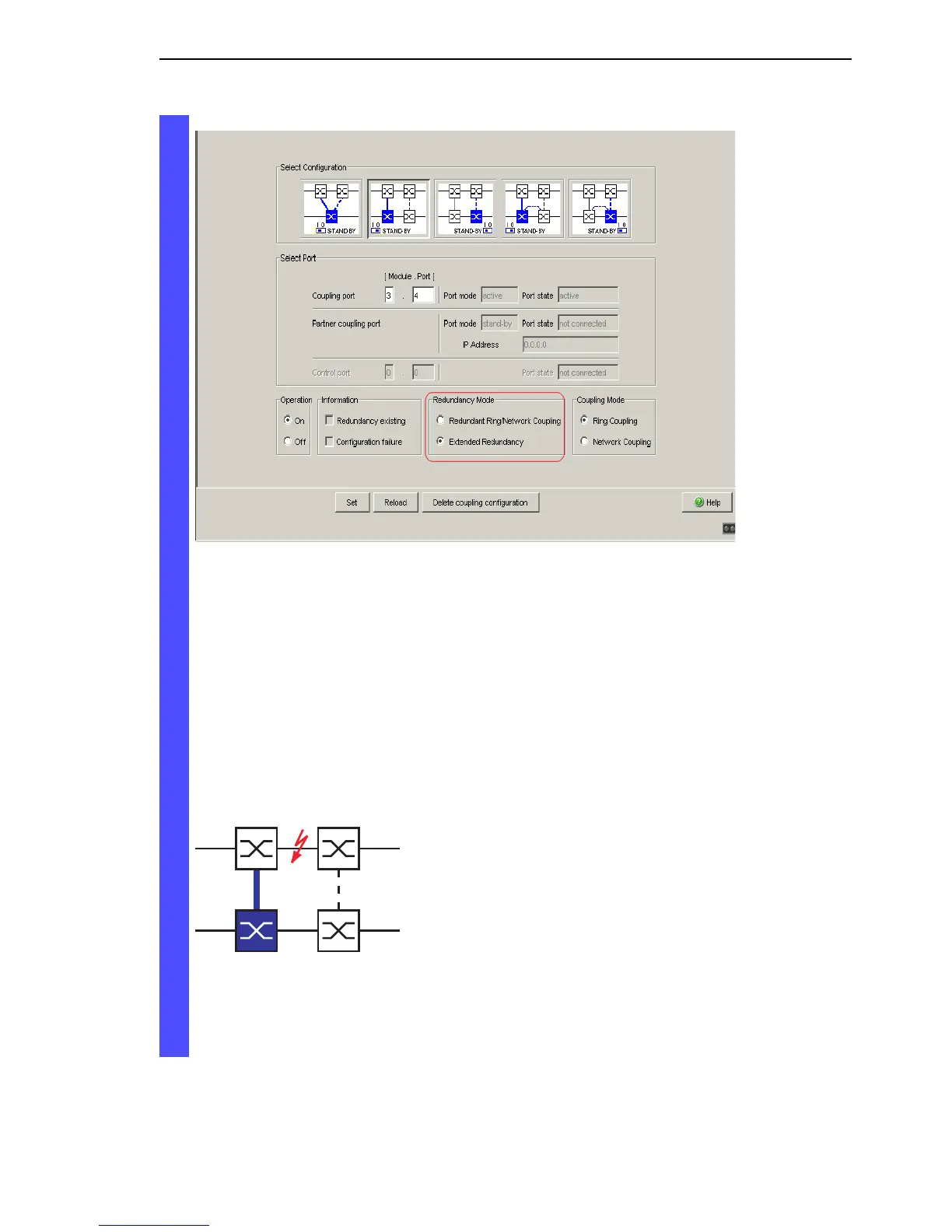

Figure 33: Selecting the redundancy mode
With the “Redundant Ring/Network Coupling” setting, either the main
line or the redundant line is active. Both lines are never active simulta-
neously.
With the “Extended Redundancy” setting, the main line and the redun-
dant line are simultaneously active if the connection line between the
devices in the connected network fails (see fig. 27).
During the reconfiguration period, there may be package duplications.
Therefore, only select this setting if your application detects package
duplications.
Figure 34: Extended redundancy
Coupling mode
