14
Installation MSP30/32/40/42 and MSM20/22/24/40/42/46/50
Release
12
06/2018

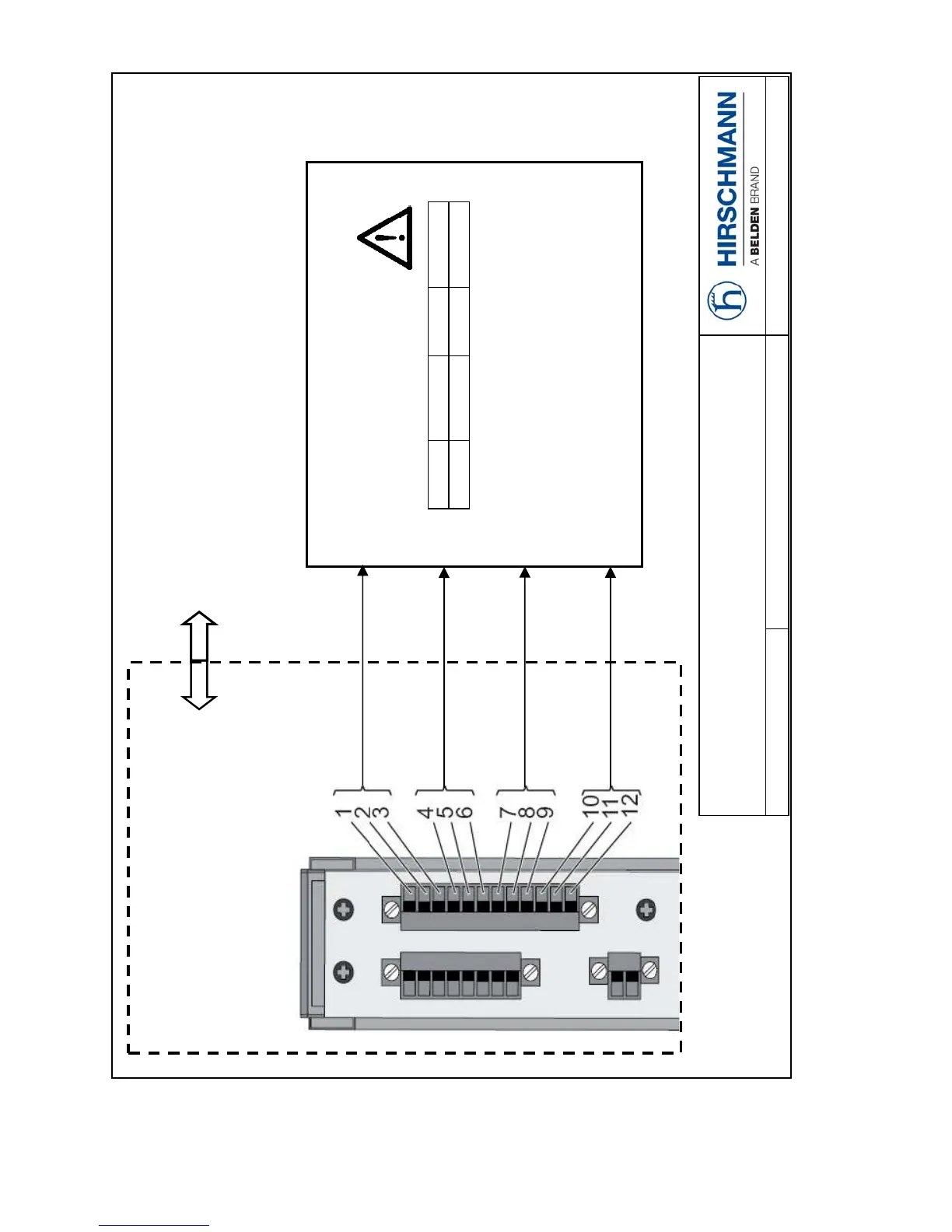

CONTROL DRAWING for MSM24-IOIOIOIO devices
for Use in Hazardous Locations
Class I Division 2 , Groups A, B, C, D
Rev. 0 Document No.:000172850DNR Page 1/2
Nonincendive field wiring parameters:
THE RELAY TERMINALS ARE DEPENDENT
UPON THE FOLLOWING
ENTY PARAMETERS: *)
U
i
I
i
C
i
L
i
30 V 90 mA 5 nF 1 µH
The Entity Parameters are to apply to
the following pin combinations:
pin 2 and pin 1; pin 2 and pin 3,
pin 5 and pin 4; pin 5 and pin 6,
pin 8 and pin 7; pin 8 and pin 9,
pin 11 and pin10; pin 11 and pin 12.
Detail of MSM24-IOIOIOIO
Class I Division 2, Groups A, B, C, D
Hazardous Location
Ordinary Location, Non-Hazardous Area,
Nonexplosive Atmosphere
Pin
