Hirschmann MSM20 User Manual

Installation MSP30/32/40/42 and MSM20/22/24/40/42/46/50
Release 12 06/2018
71
7.3.1 Device variants featuring customer-specific version
with the characteristic value HH
Proceed as follows:
 Disable the supply voltage.
 Disconnect the data cables.
 Disconnect the terminal blocks.
 Disconnect the grounding.

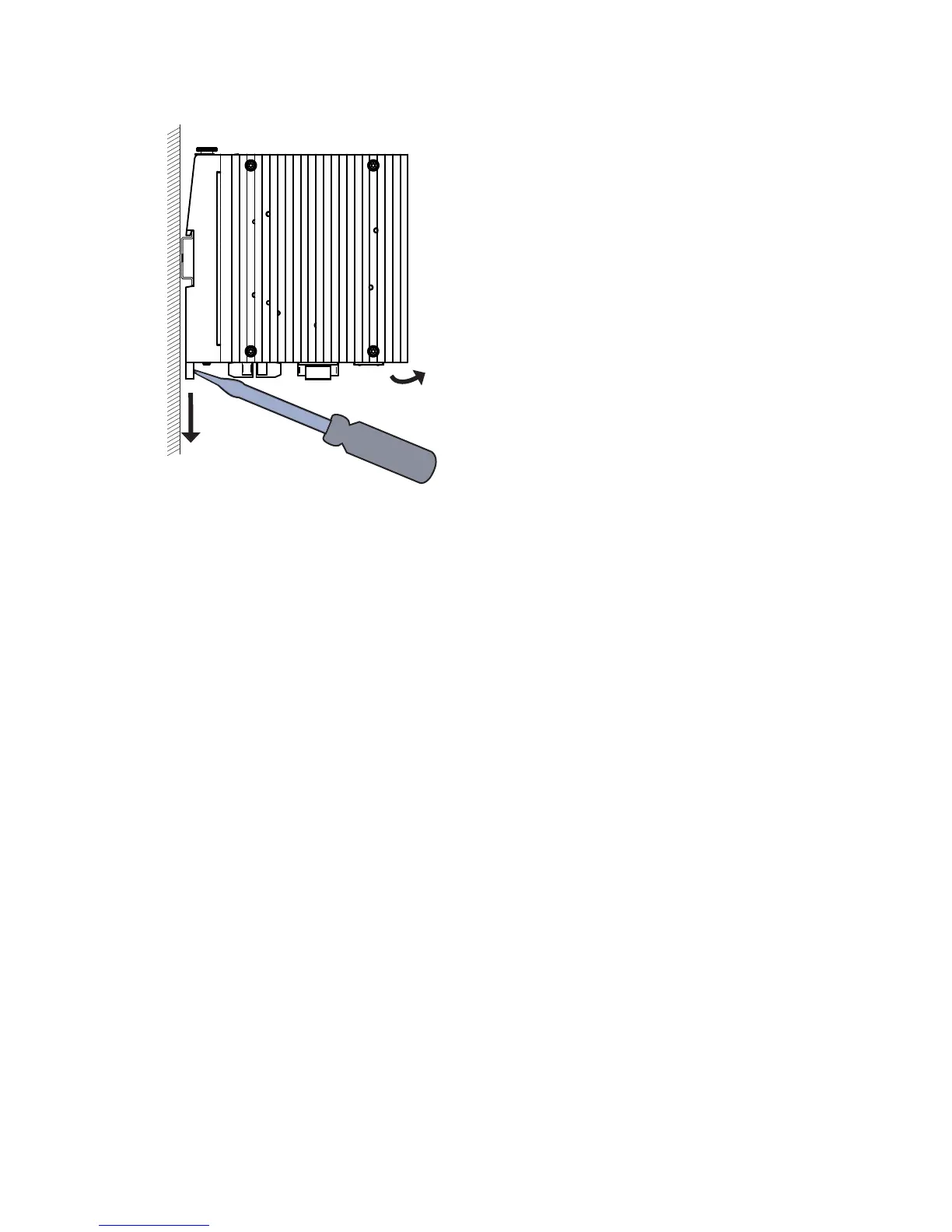

 Insert a screwdriver horizontally below the housing into the locking gate.
 Without tilting the screwdriver, pull the locking gate down and tilt the
device upwards.
7.3.2 Device variants featuring customer-specific version
with the characteristic value HX
Proceed as follows:
 Disable the supply voltage.
 Disconnect the data cables.
 Disconnect the terminal blocks.
 Disconnect the grounding.
 Remove the screws.
