1.1.5 Number of ports and media for RS40-...

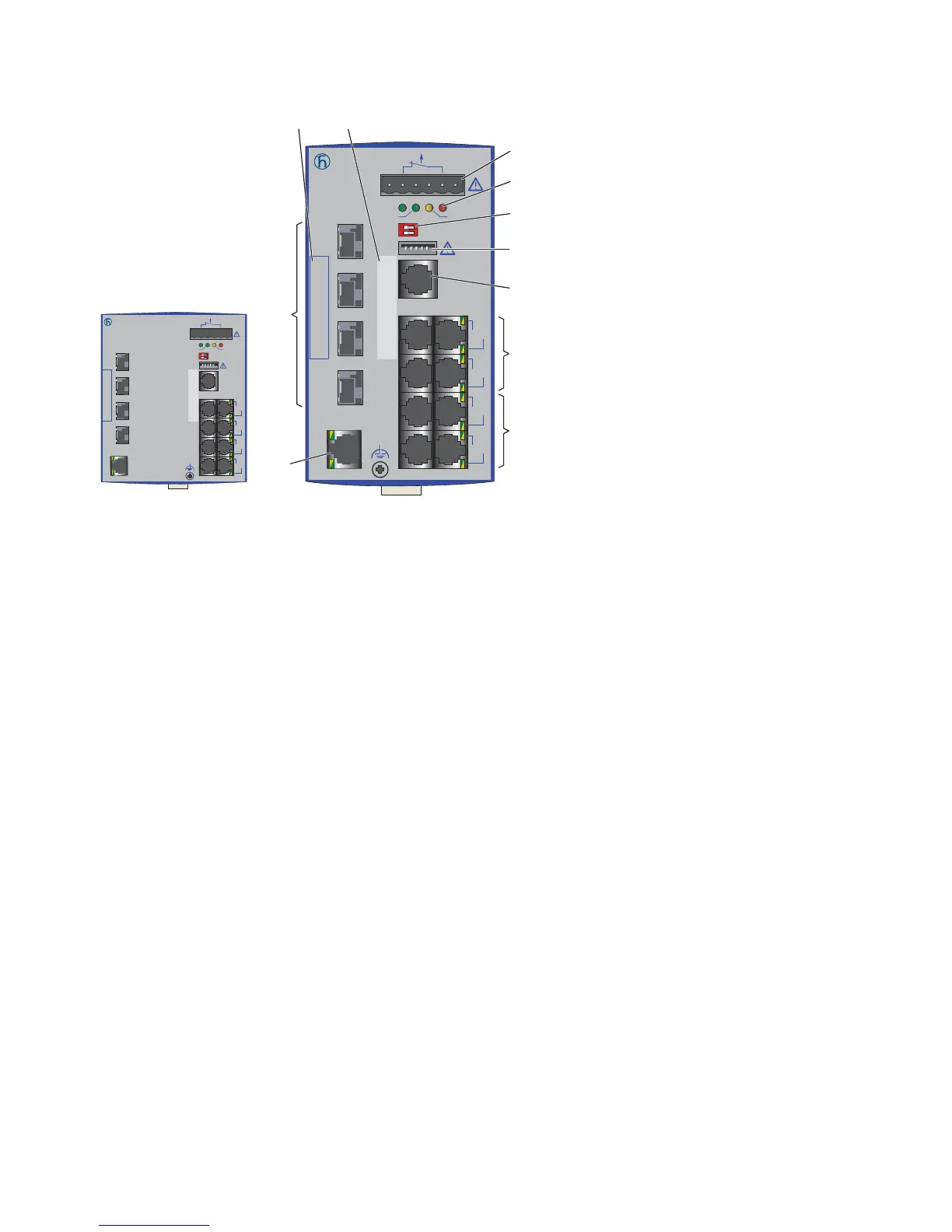

Figure 10: Device variants with 9 × 1000 Mbit/s ports (RS40-0009...)
1 to 5 and 8 to 9 – see figure 6
6 – port 1 to port 4: combo ports (CC):
FX/SX/LX, SFP slot, 100 or 1000 Mbit/s
Alternatively: T(X), RJ45 connections, 10/100/1000 Mbit/s
7 – ports in compliance with 10/100/1000BASE-T(X) (RJ45 connections)
