Hirschmann RS30 series User Manual

68
Installation RS20/22/30/32/40
Release 05 12/2015

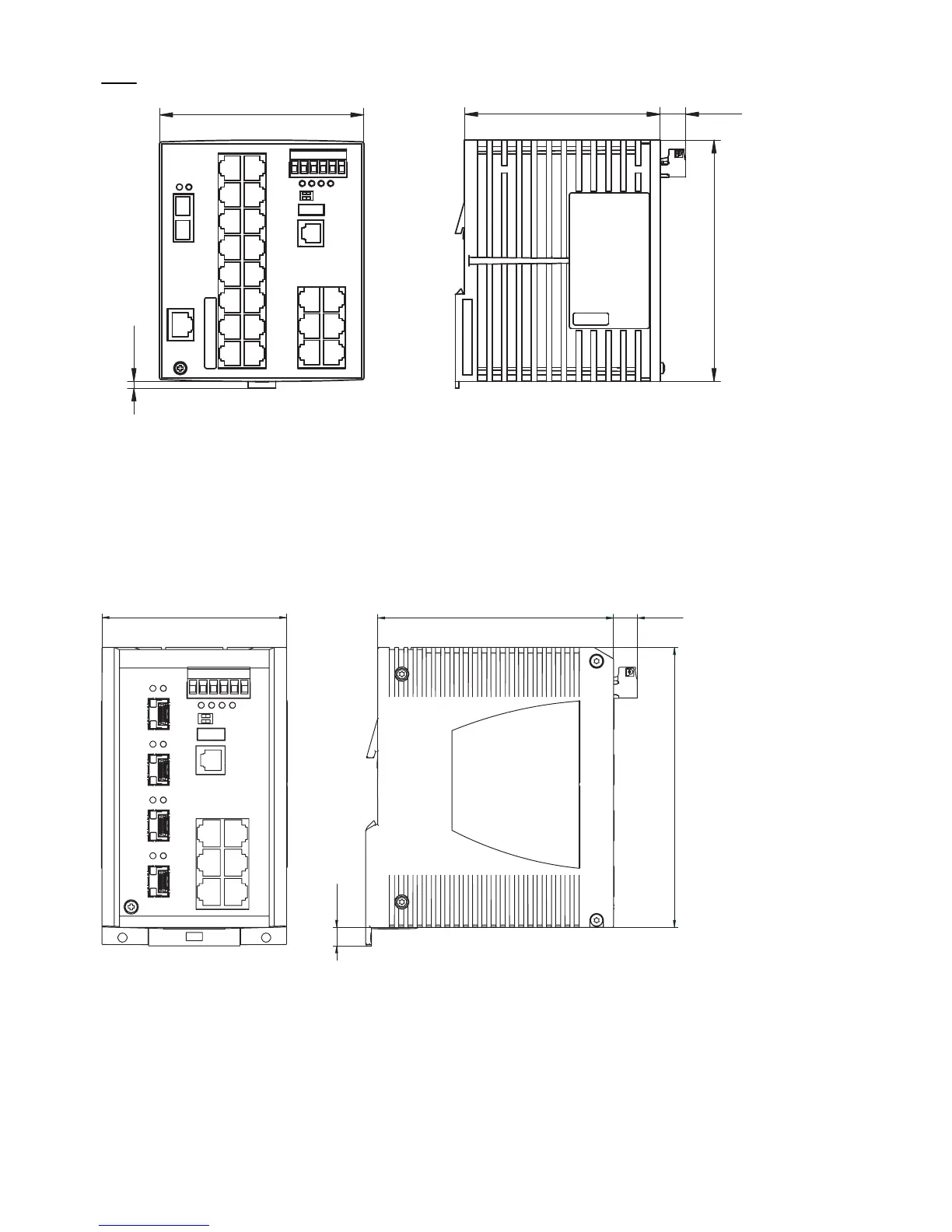

Figure 23: Dimensions of device variants
- RS20-16... , RS20-17... and RS20-24... with operating temperature
characteristic value S, T and E
- RS30-16... and RS30-24... with operating temperature
characteristic value S, T and E
- RS40-09... with operating temperature characteristic value T and E
Figure 24: Dimensions of device variants RS22.../RS32... with 8 to 10 ports with
operating temperature characteristic value S, T and E
3,5
0.14
mm
inch
106 14
130
5.12
0.554.17
110
4.33
90
115
12
9
137
4.533.55 0.47
5.39
0.36

Hirschmann RS30 series Specifications

General

Operating Temperature Range	-40°C to +70°C
Protection Class	IP30
Switching Technology	Store-and-Forward
Port Type	RJ45, Fiber
Gigabit Ports	8, 16, 24
Mounting	DIN Rail
Management	Web, CLI, SNMP
Redundancy Protocols	MRP, RSTP
Product Series	RS30 Series
Dimensions	90 mm x 125 mm x 117 mm (for 8-port model)
