Hirschmann RS40 series

Installation RS20/22/30/32/40
Release 05 12/2015
39
1.3.2 10/100 Mbit/s twisted pair port
This port is an RJ45 socket.
The 10/100 Mbit/s twisted pair port offers you the ability to connect network
components according to the IEEE 802.3 10BASE-T/100BASE-TX standard.
This port supports:
 Autonegotiation
 Autopolarity
 Autocrossing (if autonegotiation is activated)
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
Delivery state: Autonegotiation activated
The socket housing is electrically connected with the front panel.
1.3.3 10/100 Mbit/s twisted-pair connection PoE
(RS22-.../RS32-...)
This port is an RJ45 socket.
The 10/100 Mbit/s PoE port allows you to connect network components as a
PoE voltage sink according to the standard IEEE 802.3 10BASE-
T/100BASE-TX and IEEE 802.3af.
This port supports:
 Autonegotiation
 Autopolarity
 Autocrossing (if autonegotiation is activated)
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
 Power over Ethernet (PoE, at the last four ports of the device)
Delivery state: Autonegotiation activated
The socket housing is electrically connected with the front panel.
The PoE power is supplied via the wire pairs transmitting the signal (phantom
voltage).

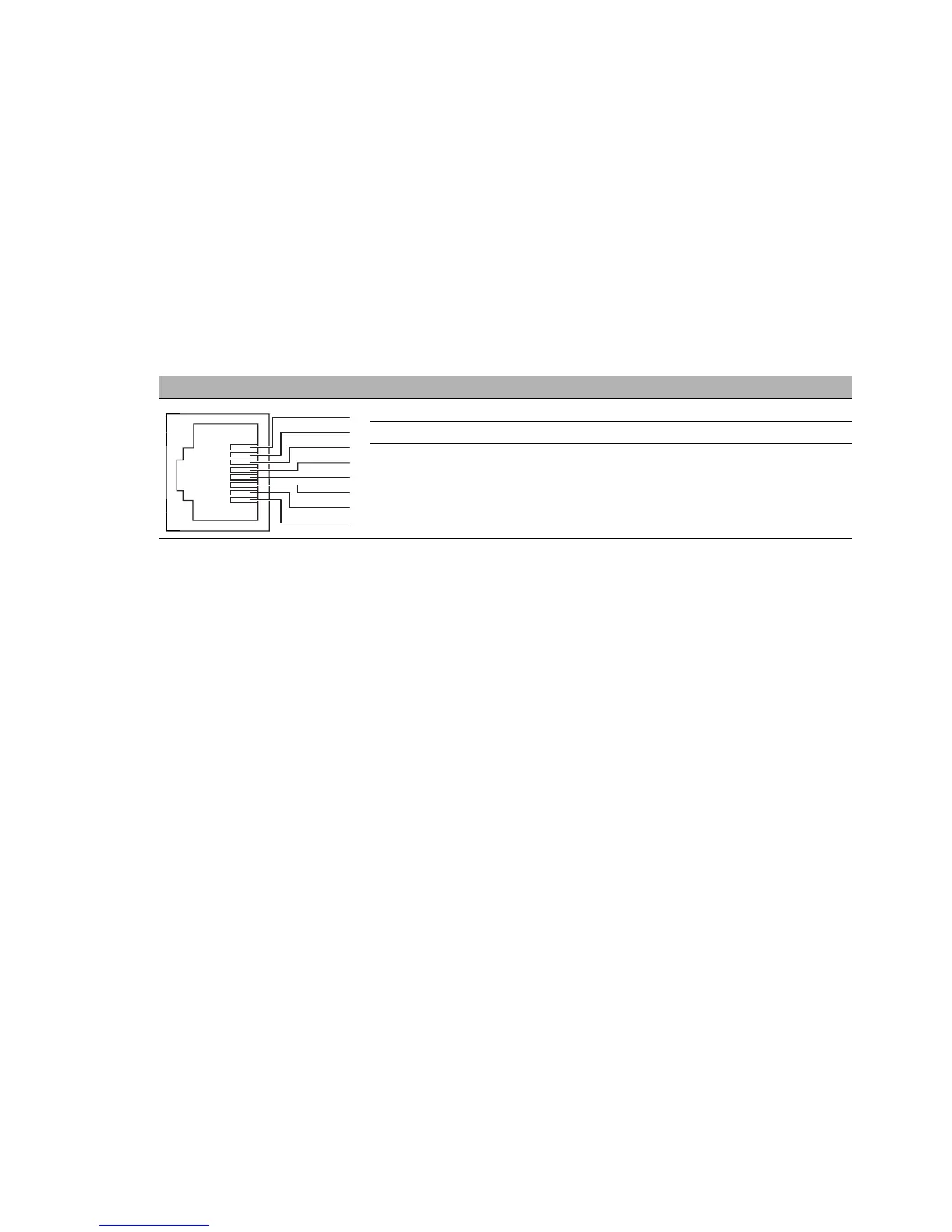

Figure Pin Operation
1+2 One line pair: receiver path
3+6 One line pair: sender path
4,5,7,8 —
Table 8: Pin assignment of a TP/TX interface in MDI-X mode, RJ45 socket
1
2
3
4
5
6
7
8
