Redundant coupling
Redundancy L2E
Release
4.1
03/08
3.2
Configuring the redundant coupling
25
Switch with Choice of main coupling or redundant coupling
DIP switch “STAND-BY” on DIP switch
DIP switch/software switch
option
According to the option selected
- “Stand-by” on the DIP switch or in the
- Redundancy:Ring/Network Coupling dialog, by selecting in
“Select configuration”.
Note: These devices have a DIP switch, with which you can choose
between the software configuration and the DIP configuration. If the
software configuration is set, the other DIP switches have no effect.
Software switch In the Redundancy:Ring/Network Coupling dialog
Table 6: Choice of main coupling or redundant coupling
Select the Redundancy:Ring/Network Coupling dialog.
You first select the configuration you want: One-Switch coupling
(“1”), two-Switch coupling (“2”) or two-Switch coupling with control
line (“3”), (see fig. 6).

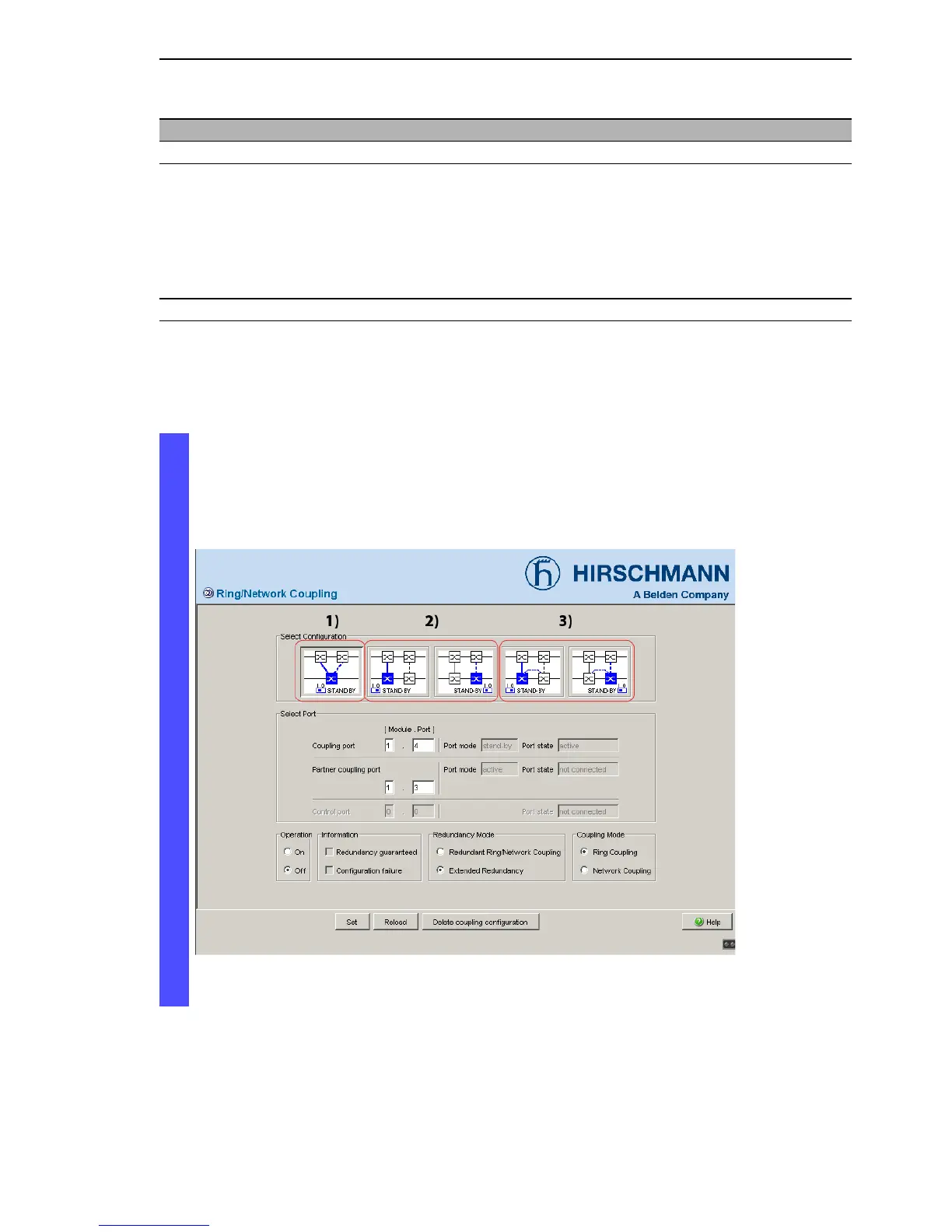

Figure 6: Selecting the configuration
