Mechanical Drawings
ML23.8 User Manual, 99182A, April 2022 5
Mechanical Drawings

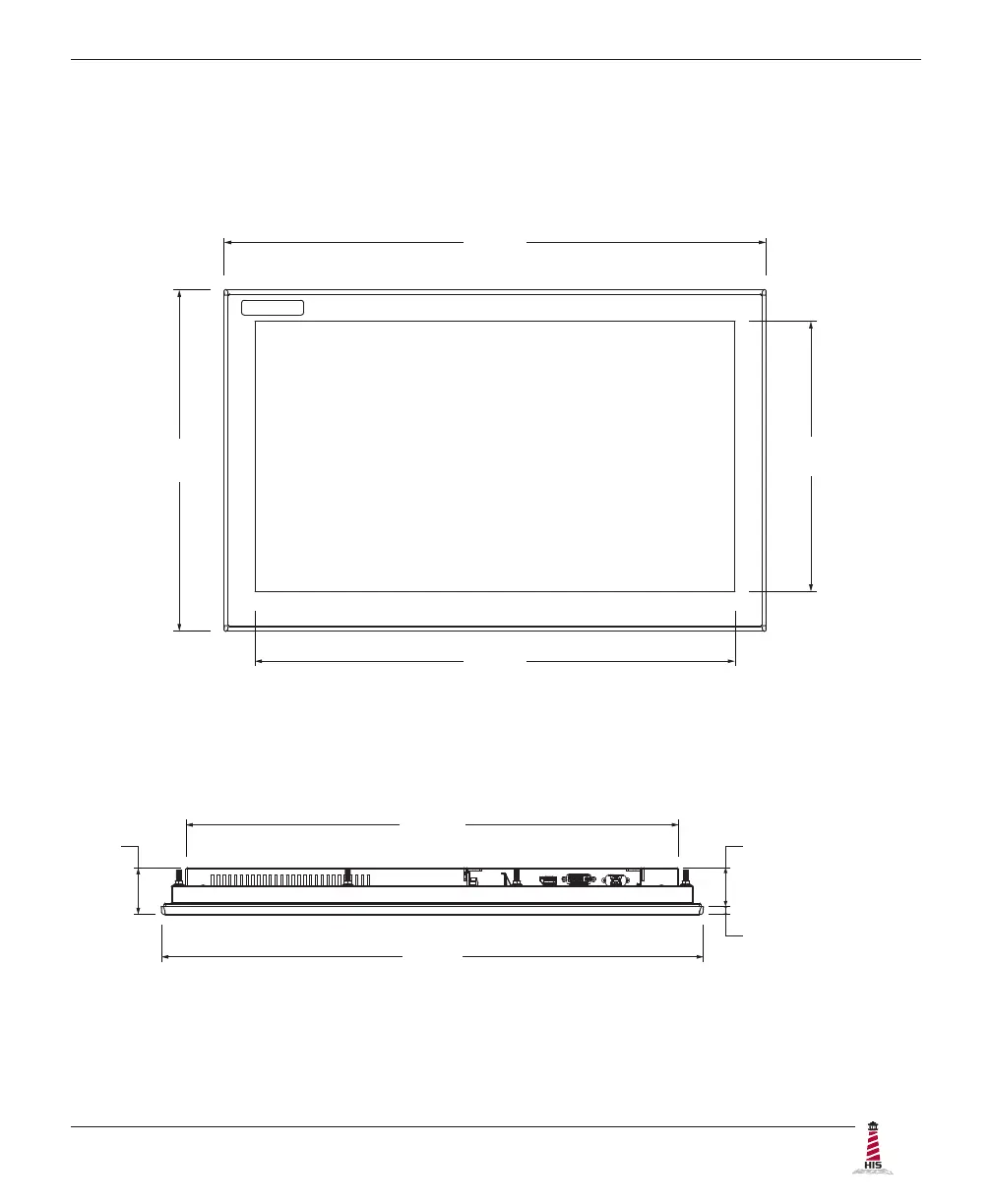

Front View
Bottom View
376.6 mm
(14.83")
596.8 mm
(23.50")
528.6 mm
(20.81")
298.0 mm
(11.73")
596.8 mm
(23.50")
8.9 mm (0.35")
542.6 mm
(21.37")
46.1 mm (1.81")
(Design to maximum depth
of 63.5 mm to ensure future
compatibility with later revisions
and replacement units.)
55.0 mm
(2.16")

HIS HIS-ML23.8 A Series Specifications

General

Brand	HIS
Model	HIS-ML23.8 A Series
Category	Monitor
Language	English
