Hisense A7100F - Wall Mount Installation Guide

3

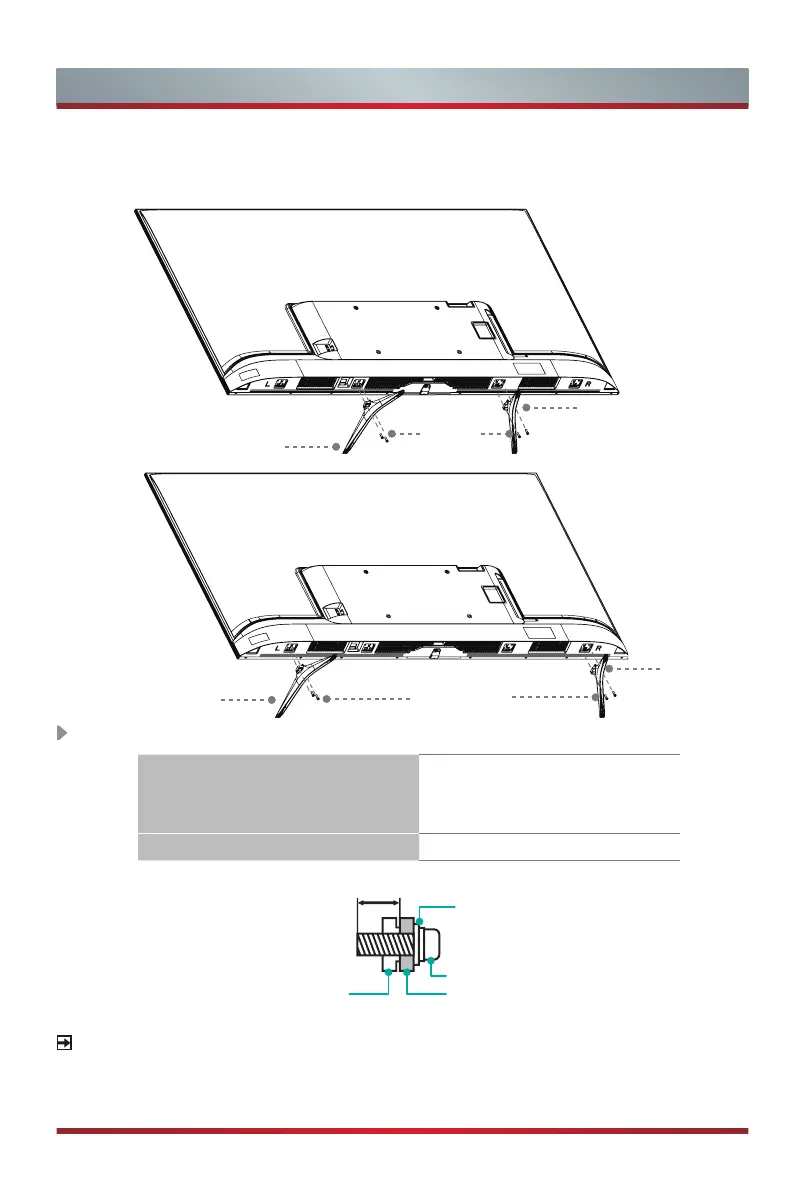

Installing the Stand or Wall mount bracket
Wall mount hole pattern (mm)
200 × 200
（
43
"
）
200 × 300
（
50
"/
55
"
）
300 × 200
（
65
"
）
Wall mount screw size (mm) M6
Installing the wall mount bracket
8.0-10.0 mm
(
50
"/
55
"
)
9.5 -11.5 mm
(
43
"/
65
"
)
Wall Mount Bracket
Wall Mount Screw
Wall Mount Spacer
Rear cover of the TV
•
The diameter and length of the screws differ depending on the wall mount bracket model.
•
Wall mount bracket is optional, your device may not have wall mount bracket, please refer
to the actual accessories.
Follow instructions provided with the wall mount bracket.
NOTE
65"
Attention
: According to the size of the TV supporting surface, you can select one of
the base stand installation patterns, as shown in the figure.
Screws
：
（
M5×12) × 4
Base Stand
Base Stand
Base Stand
Base Stand
Screws
：
（
M5×12) × 4
