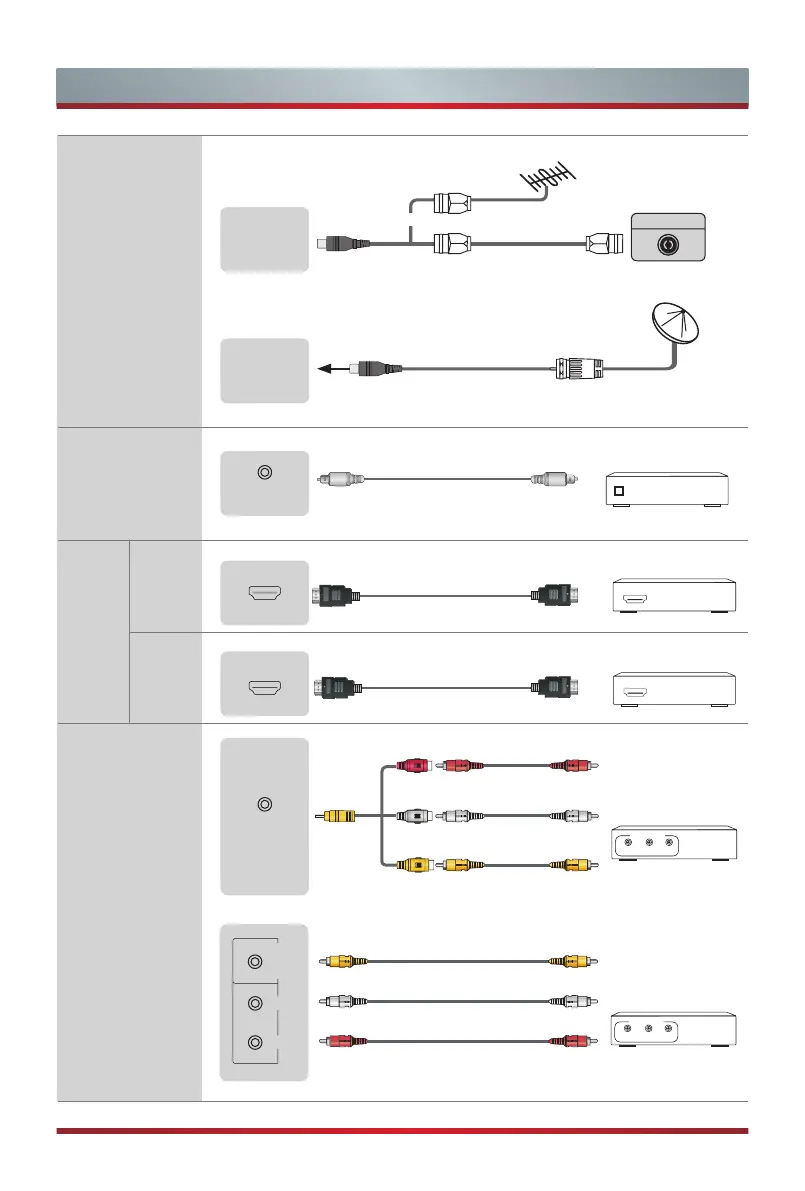

Making Connections
Outdoor
Antenna
Antenna Cable (75Ω)
or
ANT OUT
Cable
VHF/UHF Antenna
Satellite antenna
ANT 1
DVB-T/T2/C
ANT 2
DVB-S/S2
DIGITAL AUDIO cable (not included)
Audio Amplier/Speaker
ANT
AV IN
DIGITAL
AUDIO OUT
HDMI
HDMI
(ARC)
HDMI
HDMI cable (not included)
HDMI cable (not included)
HDMI
Audio Amplier/Speaker
HDMI
DVD/Blu-Ray/AV receiver/
Set-top Box
(not included)
(not included)
DIGITAL
AUDIO OUT
White(L)
Red(R)
Yellow(Video)
VCR/DVD Player/
Recorder/Set-top box/
Satellite Receiver/
Video Camera
Video
L
A/V OUT
R
AV IN
(not included)
(not included)
(not included)
HDMI
ARC
HDMI
(Cables are not included)
White(L)
Red(R)
Yellow(Video)
VCR/DVD Player/
Recorder/Set-top box/
Satellite Receiver/
Video Camera
Video
L
A/V OUT
R
AV IN
VIDEOLR
