8
Installation In Vertical Sliding Windows
NOTE:The window installation kit can be used with vertical sliding windows between 18'' and 50'' wide.
Foal seal N
(Adhesive type-shorter)
Foal seal M
(Adhesive type)
A
E or F
Window-lock Bracket

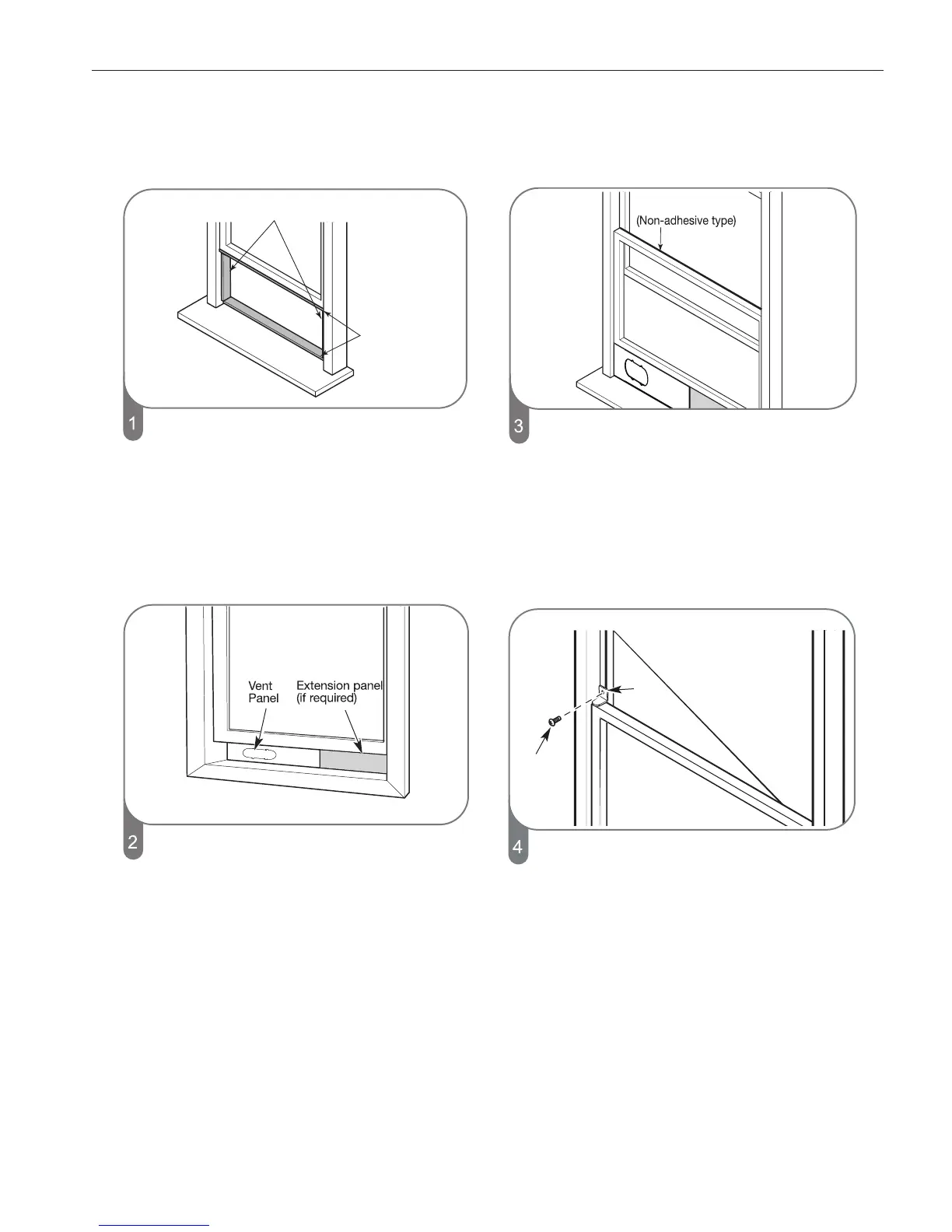

Cut the foam seal M(adhesive type) & N
(adhesive type-shorter)to the proper
length,and attcah it to the window sash and
frame.
Cut the foam seal A(Non-adhesive type) to the
window width.Stuff the foam seal A between
the glass and the window to prevent air and
insects from getting into the room.
Install the Window-lock bracket with a E or F screw as
shown if you need. E screw is suitable for wood
window, F screw is suitable for metal window.
Insert the vent panel assembly,including
extension panels,if needed，
into the window
opening.Extend the extension panels,if used.
