44
6.4 Fan motor
Rated voltage:DC12V
Rated input power:2.5W
6.4.1 Basic parameters
6.4.2 Checking method
6.Circuit and checking
1.Check the connecting wiring of fan motor is well or not,repair if it

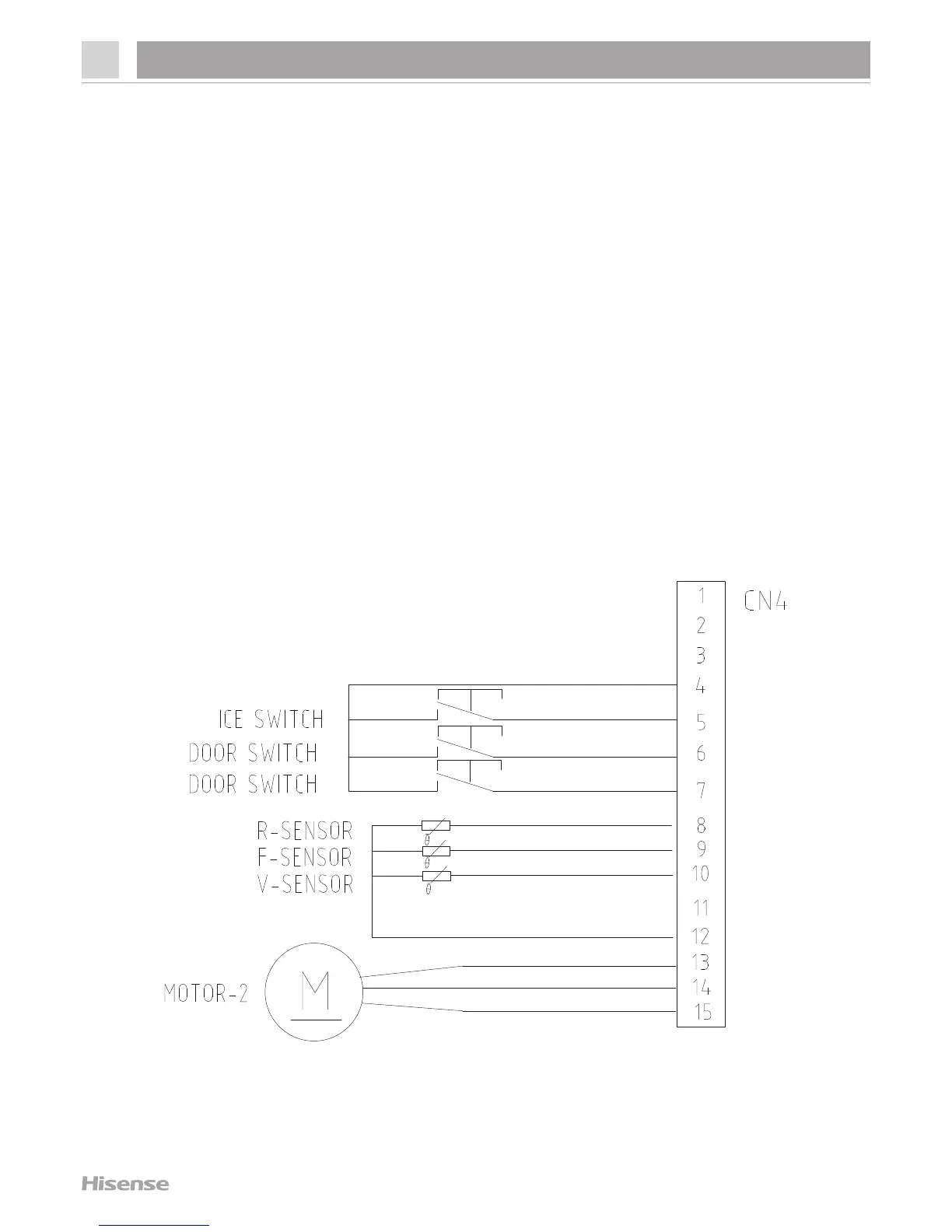

is broken.The fan motor corresponding pin No.13~15 on CN4
connector of mainboard,as the drawing below.
2.Pin No.14 connect 12V power and pin No.13 connect GND,if the
fan motor works normally,change the mainboard;If not,change the
fan motor.
