7

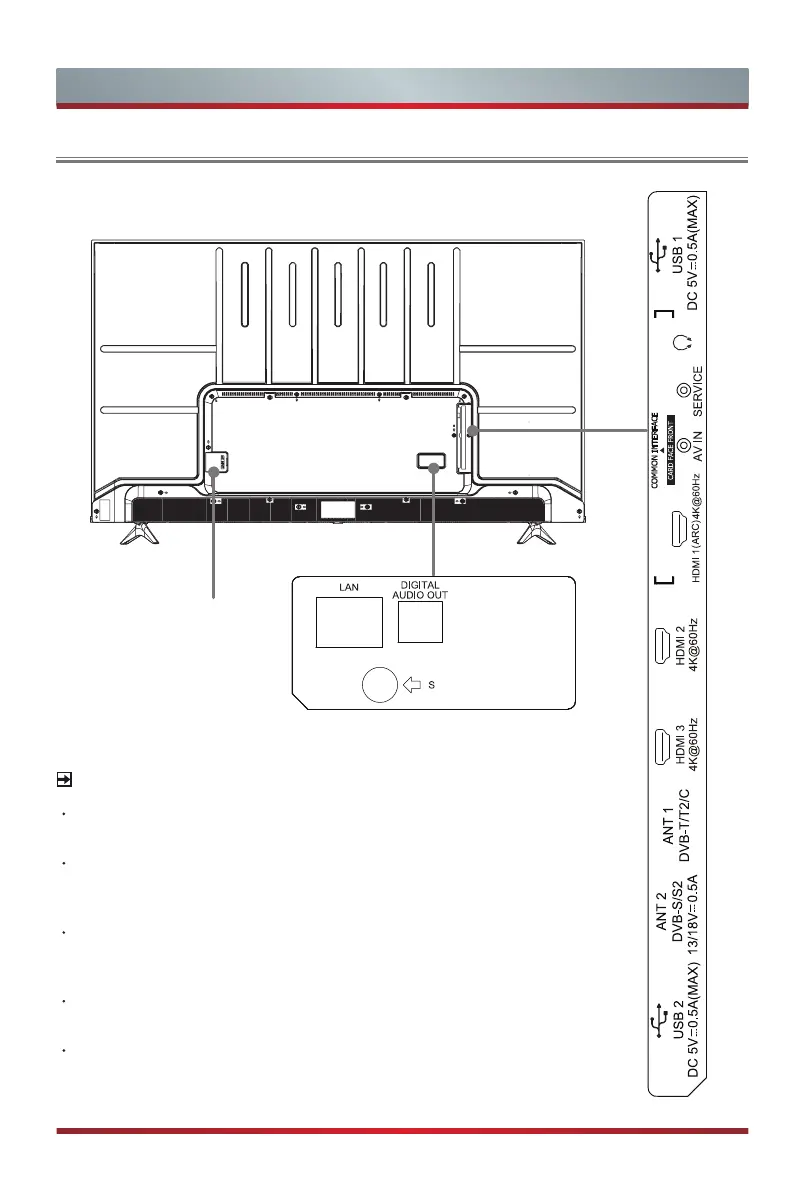

TV Rear
TV Rear
NOTES
ANT2 Jack supports power supply for satellite antenna (13/18V,
0.5A max.)
Check the jacks for position and type before making any
connections. Loose connections can result in image or color
problems. Make sure that all connections are tight and secure.
Not all A/V devices have the ability to connect to a TV, please
refer to the user’s manual of your A/V device for compatibility
and connections procedure.
Before connecting external equipment, remove the mains plug
from the wall socket. Otherwise, it may cause electric shock.
Service jack is not available for you to connect an external
device. It can only be used by our factory for testing purposes.
65"
AC INPUT
To Next Page
