Installing your Freestanding Cooker
Electrical connection
IMPORTANT: Electrical connections must be carried out by a suitably qualified
person and in accordance with all relevant local building and installation regulations.

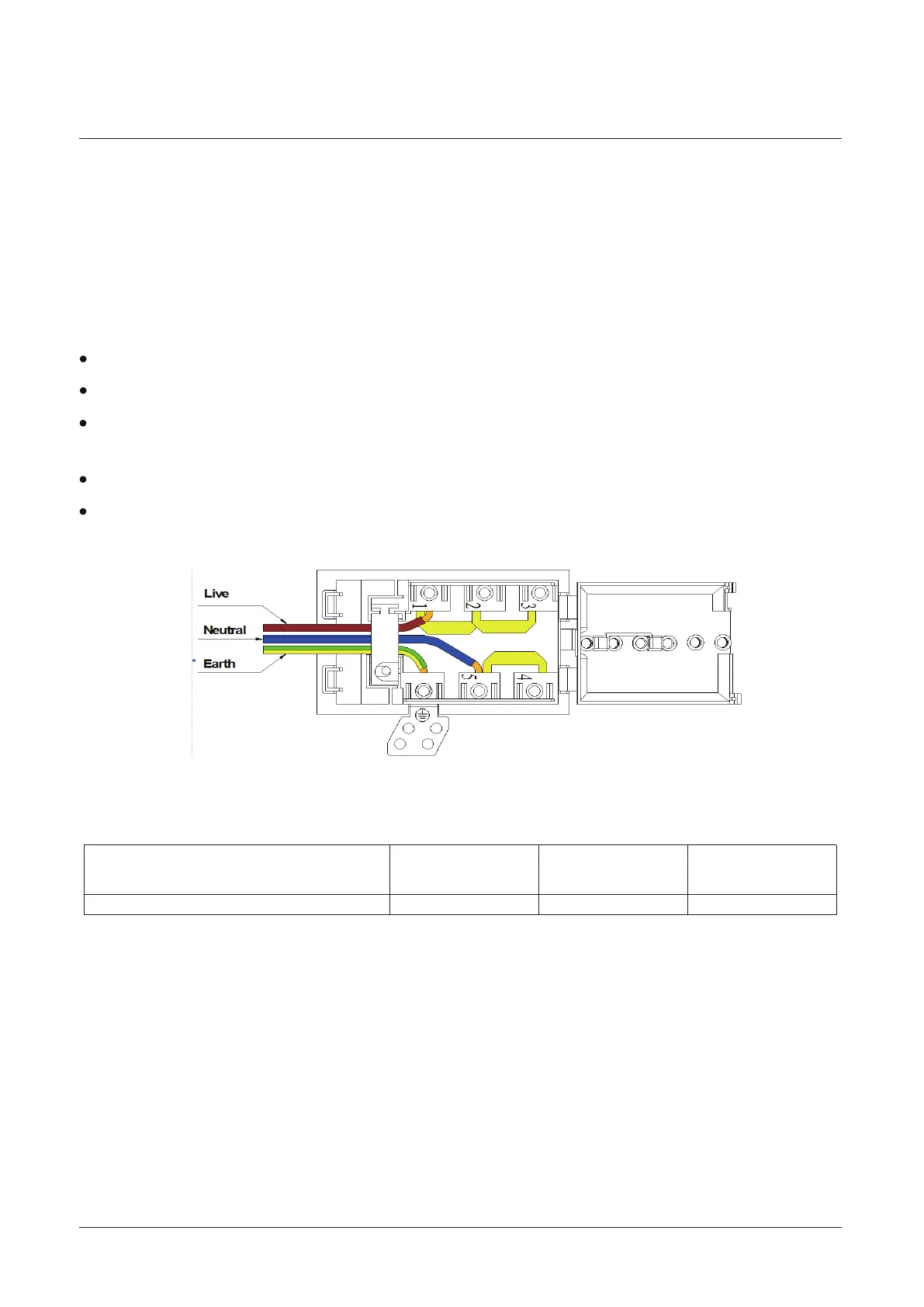

Connecting appropriate power supply terminal board/ connector block:
Using a screwdriver, prize open tabs of the Terminal board cover.
Remove the wire clamp screw.
Fasten cable clamp and close the cover of the terminal board.
The ac power supply should be 220-240 V, 50/60 Hz. For electric cookers, the
minimum 45A fuse, or at least 45A distribution circuit breaker.
Fasten the wires beneath the corresponding screw heads, using brass ‘bridge’
for single phase supply.
Fitting on a Power Supply Cable
Warning: Connect the power cord in accordance with the instructions listed in the
table below.
Wire cross-sectional area(mm2)
Connection mode
L N E
1N~ Min4 Min4 Min4
Connecting the supply cable to the mains
Install an approved circuit breaker with a minimum contact opening of 3 mm,
between the appliance and the mains fuse box .The circuit breaker should be sized
according to the load and should comply with current regulations (the earth wire
should not be interrupted by the circuit breaker).
