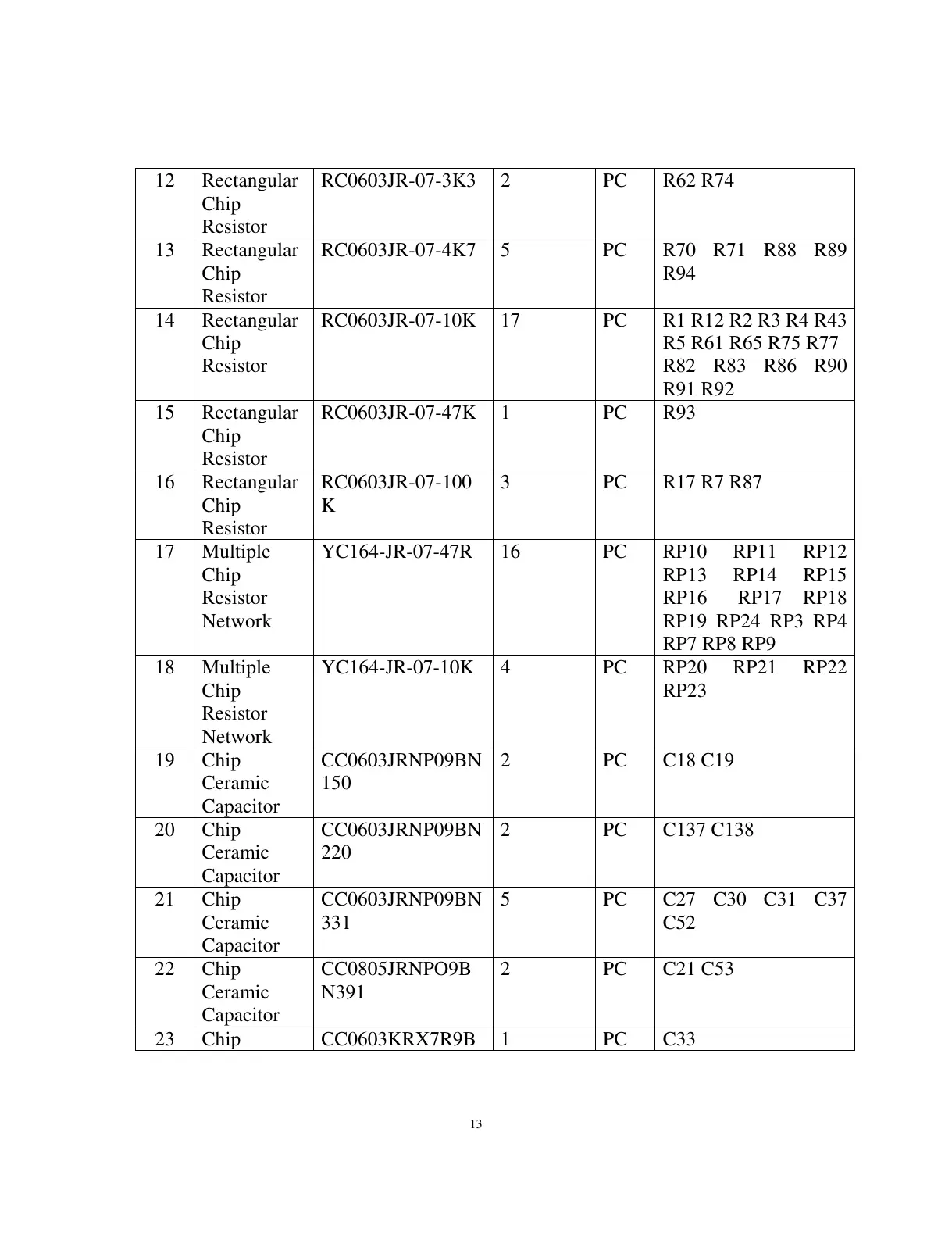

12 Rectangular
Chip
Resistor
RC0603JR-07-3K3 2 PC R62 R74
13 Rectangular
Chip
Resistor
RC0603JR-07-4K7 5 PC R70 R71 R88 R89
R94
14 Rectangular
Chip
Resistor
RC0603JR-07-10K 17 PC R1 R12 R2 R3 R4 R43
R5 R61 R65 R75 R77
R82 R83 R86 R90
R91 R92
15 Rectangular
Chip
Resistor
RC0603JR-07-47K 1 PC R93
16 Rectangular
Chip
Resistor
RC0603JR-07-100
K
3 PC R17 R7 R87
17 Multiple
Chip
Resistor
Network
YC164-JR-07-47R 16 PC RP10 RP11 RP12
RP13 RP14 RP15
RP16 RP17 RP18
RP19 RP24 RP3 RP4
RP7 RP8 RP9
18 Multiple
Chip
Resistor
Network
YC164-JR-07-10K 4 PC RP20 RP21 RP22
RP23
19 Chip
Ceramic
Capacitor
CC0603JRNP09BN
150
2 PC C18 C19
20 Chip
Ceramic
Capacitor
CC0603JRNP09BN
220
2 PC C137 C138
21 Chip
Ceramic
Capacitor
CC0603JRNP09BN
331
5 PC C27 C30 C31 C37
C52
22 Chip
Ceramic
Capacitor
CC0805JRNPO9B
N391
2 PC C21 C53
23 Chi
p
CC0603KRX7R9B 1 PC C33
