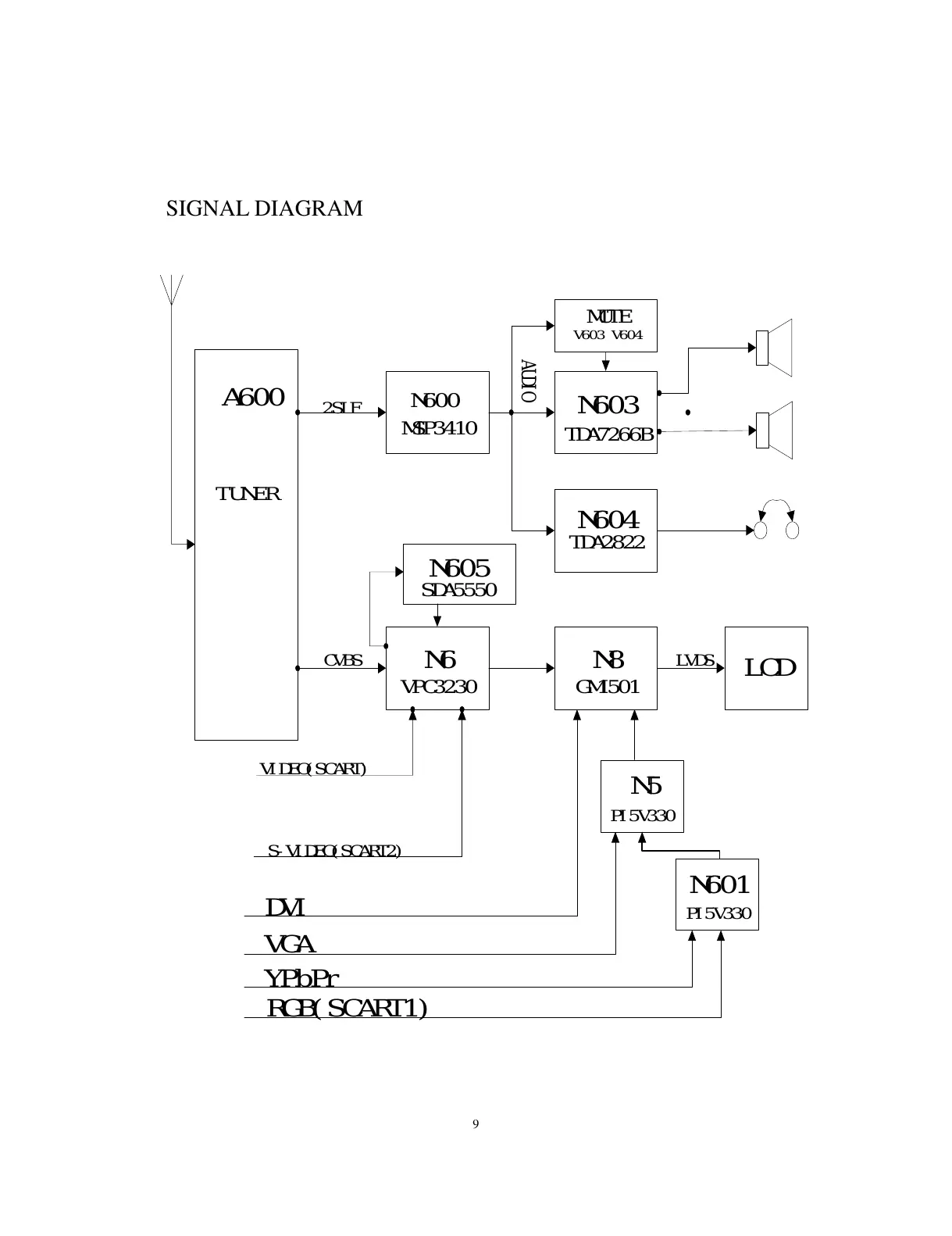

SIGNAL DIAGRAM
A600
N600
MSP3410
N603
TDA7266B
2SIF
AUDIO
N604
TDA2822
MUTE
V603 V604
CVBS
LCD
N6
VPC3230
N605
SDA5550
VIDEO(SCART)
S-VIDEO(SCART2)
LVDS
N601
PI5V330
VGA
DVI
YPbPr
RGB(SCART1)
TUNER
N8
GM1501
N5
PI5V330
