Hisense LCD3203EU - Part List; Main Board Part

12

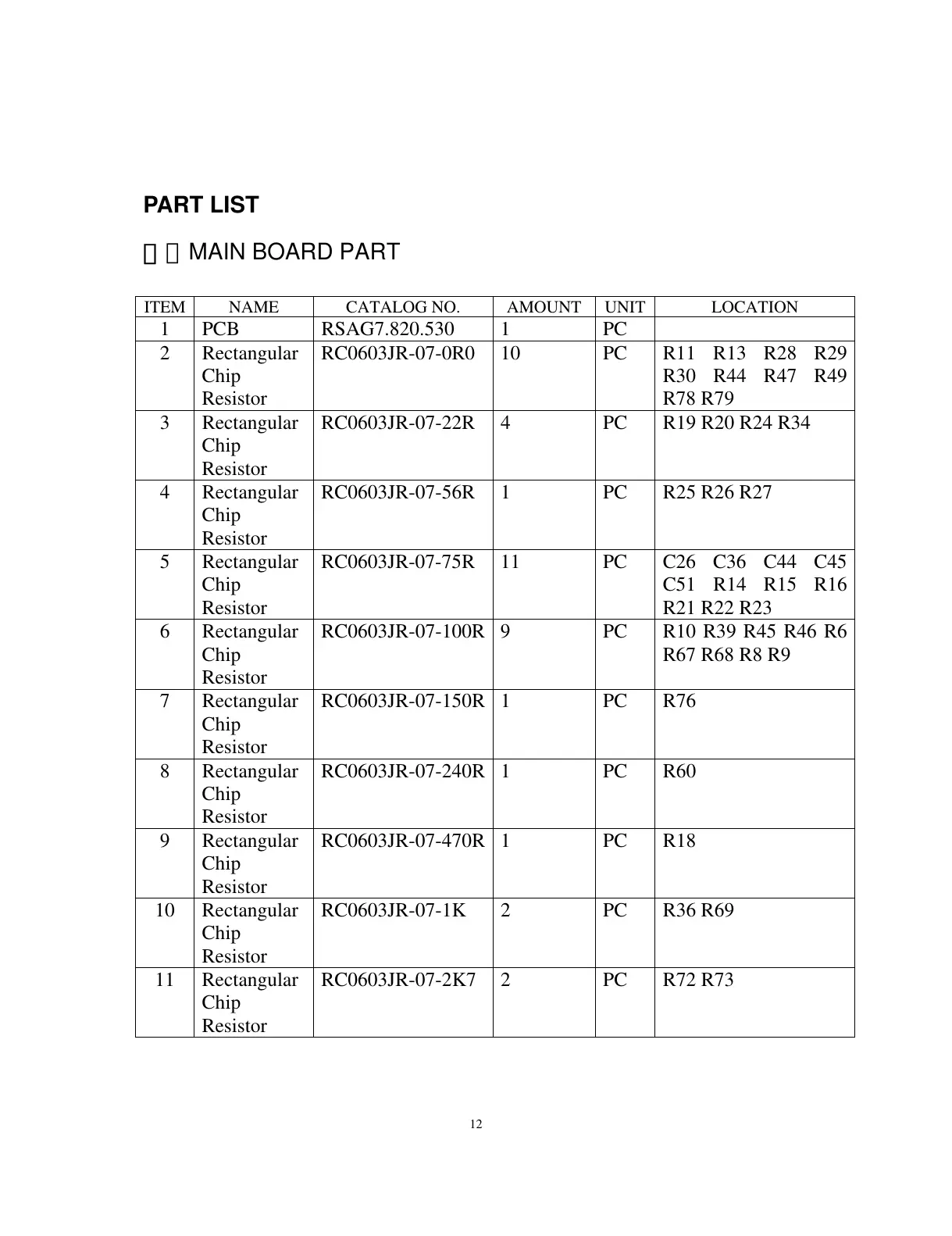

PART LIST
一、
MAIN BOARD PART
ITEM NAME CATALOG NO. AMOUNT UNIT LOCATION
1 PCB RSAG7.820.530 1 PC
2 Rectangular
Chip
Resistor
RC0603JR-07-0R0 10 PC R11 R13 R28 R29
R30 R44 R47 R49
R78 R79
3 Rectangular
Chip
Resistor
RC0603JR-07-22R 4 PC R19 R20 R24 R34
4 Rectangular
Chip
Resistor
RC0603JR-07-56R 1 PC R25 R26 R27
5 Rectangular
Chip
Resistor
RC0603JR-07-75R 11 PC C26 C36 C44 C45
C51 R14 R15 R16
R21 R22 R23
6 Rectangular
Chip
Resistor
RC0603JR-07-100R 9 PC R10 R39 R45 R46 R6
R67 R68 R8 R9
7 Rectangular
Chip
Resistor
RC0603JR-07-150R 1 PC R76
8 Rectangular
Chip
Resistor
RC0603JR-07-240R 1 PC R60
9 Rectangular
Chip
Resistor
RC0603JR-07-470R 1 PC R18
10 Rectangular
Chip
Resistor
RC0603JR-07-1K 2 PC R36 R69
11 Rectangular
Chip
Resistor
RC0603JR-07-2K7 2 PC R72 R73
