Hisense LCD3203EU User Manual

8
7 BLU Power indicator light
8 GND
XPE005
、
XPE006

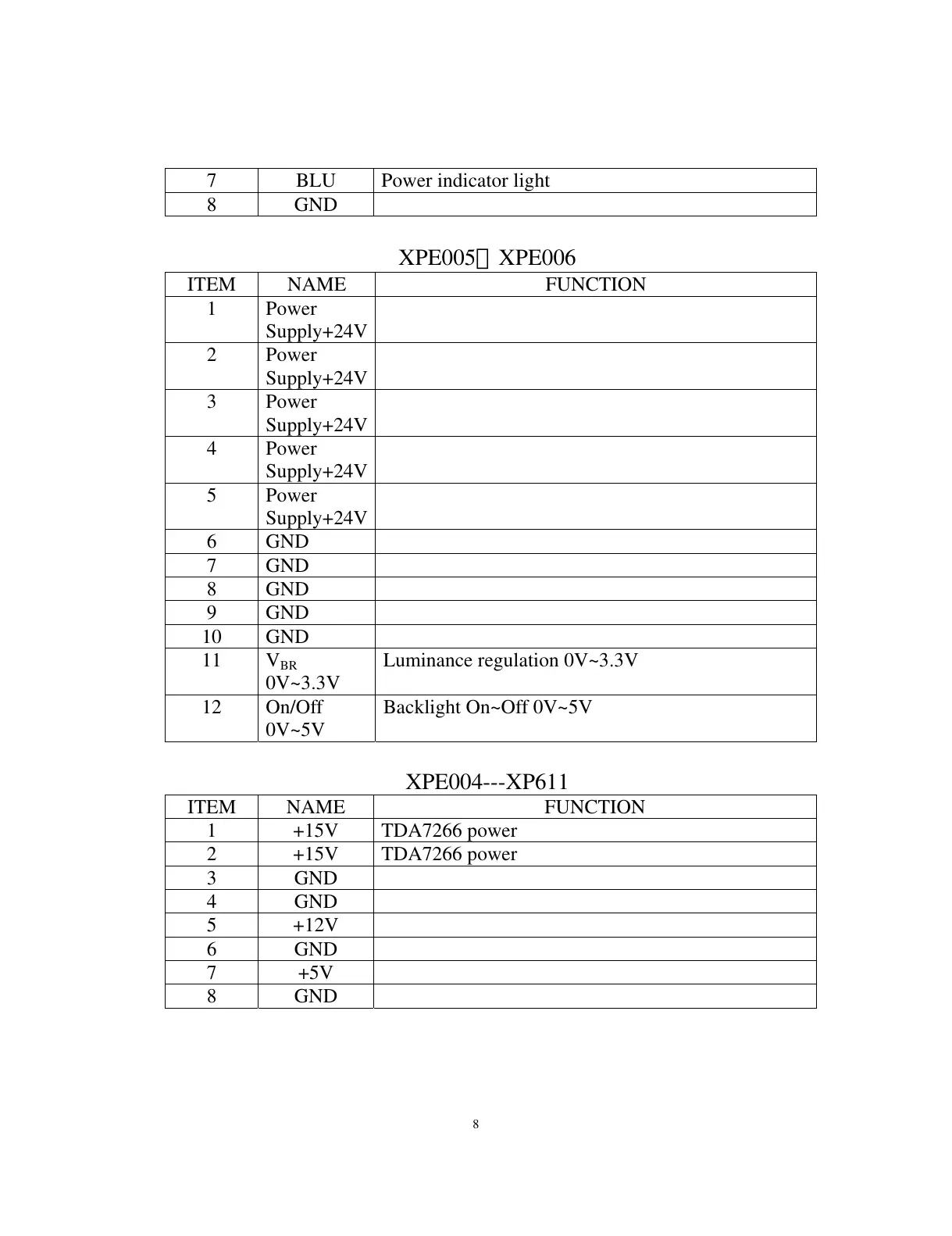

ITEM NAME FUNCTION
1 Power
Supply+24V
2 Power
Supply+24V
3 Power
Supply+24V
4 Power
Supply+24V
5 Power
Supply+24V
6 GND
7 GND
8 GND
9 GND
10 GND
11 V
BR
0V~3.3V
Luminance regulation 0V~3.3V
12 On/Off
0V~5V
Backlight On~Off 0V~5V
XPE004---XP611
ITEM NAME FUNCTION
1 +15V TDA7266 power
2 +15V TDA7266 power
3 GND
4 GND
5 +12V
6 GND
7 +5V
8 GND
