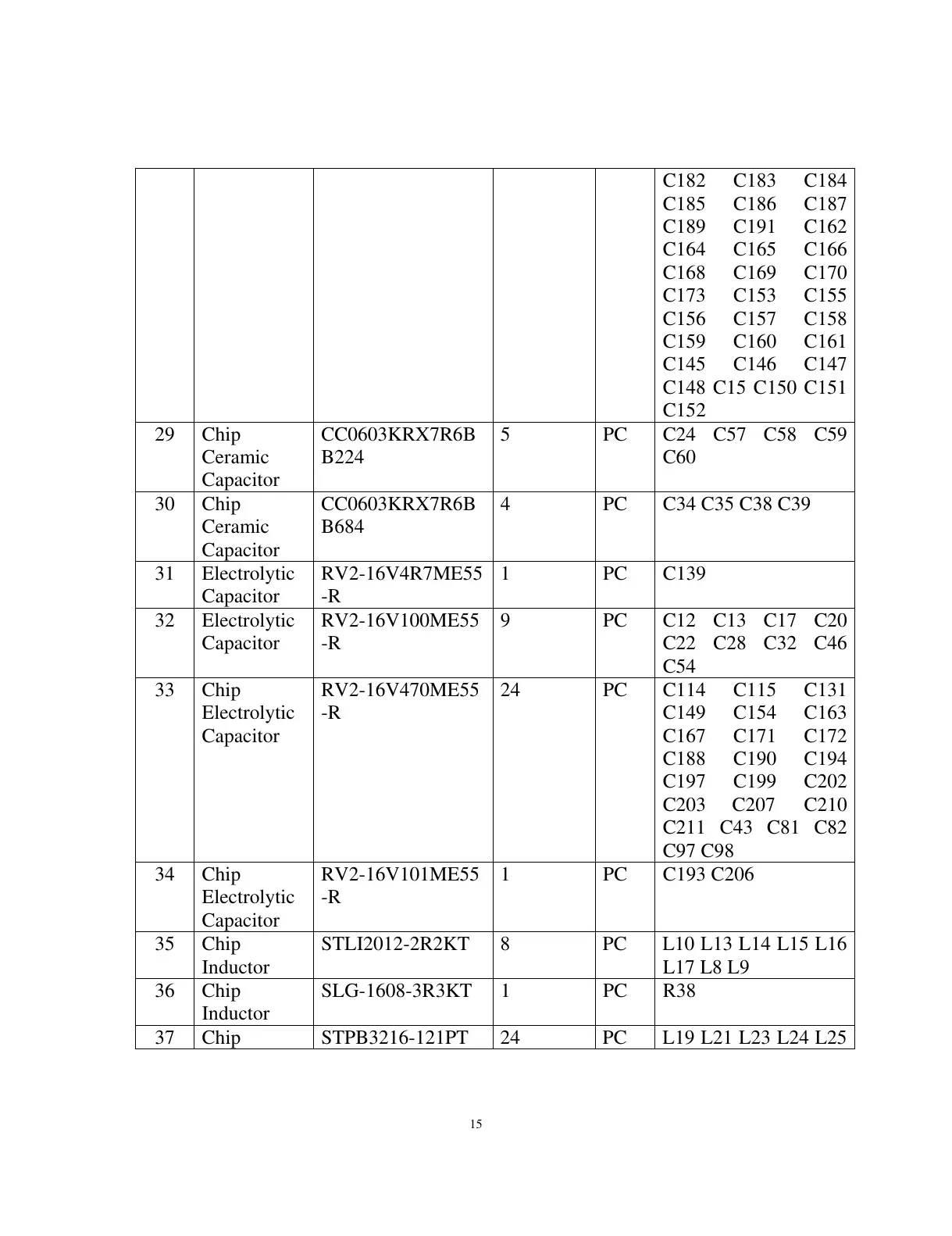

Hisense LCD3203EU - Page 15

15
C182 C183 C184
C185 C186 C187
C189 C191 C162
C164 C165 C166
C168 C169 C170
C173 C153 C155
C156 C157 C158
C159 C160 C161
C145 C146 C147
C148 C15 C150 C151
C152
29 Chip
Ceramic
Capacitor
CC0603KRX7R6B
B224
5 PC C24 C57 C58 C59
C60
30 Chip
Ceramic
Capacitor
CC0603KRX7R6B
B684
4 PC C34 C35 C38 C39
31 Electrolytic
Capacitor
RV2-16V4R7ME55
-R
1 PC C139
32 Electrolytic
Capacitor
RV2-16V100ME55
-R
9 PC C12 C13 C17 C20
C22 C28 C32 C46
C54
33 Chip
Electrolytic
Capacitor
RV2-16V470ME55
-R
24 PC C114 C115 C131
C149 C154 C163
C167 C171 C172
C188 C190 C194
C197 C199 C202
C203
C207 C210
C211 C43 C81 C82
C97 C98
34 Chip
Electrolytic
Capacitor
RV2-16V101ME55
-R
1 PC C193 C206
35 Chip
Inductor
STLI2012-2R2KT 8 PC L10 L13 L14 L15 L16
L17 L8 L9
36 Chip
Inductor
SLG-1608-3R3KT 1 PC R38
37 Chi
p
STPB3216-121PT 24 PC L19 L21 L23 L24 L25
