Hisense LCD3203EU - Tune Board Part

18
二、

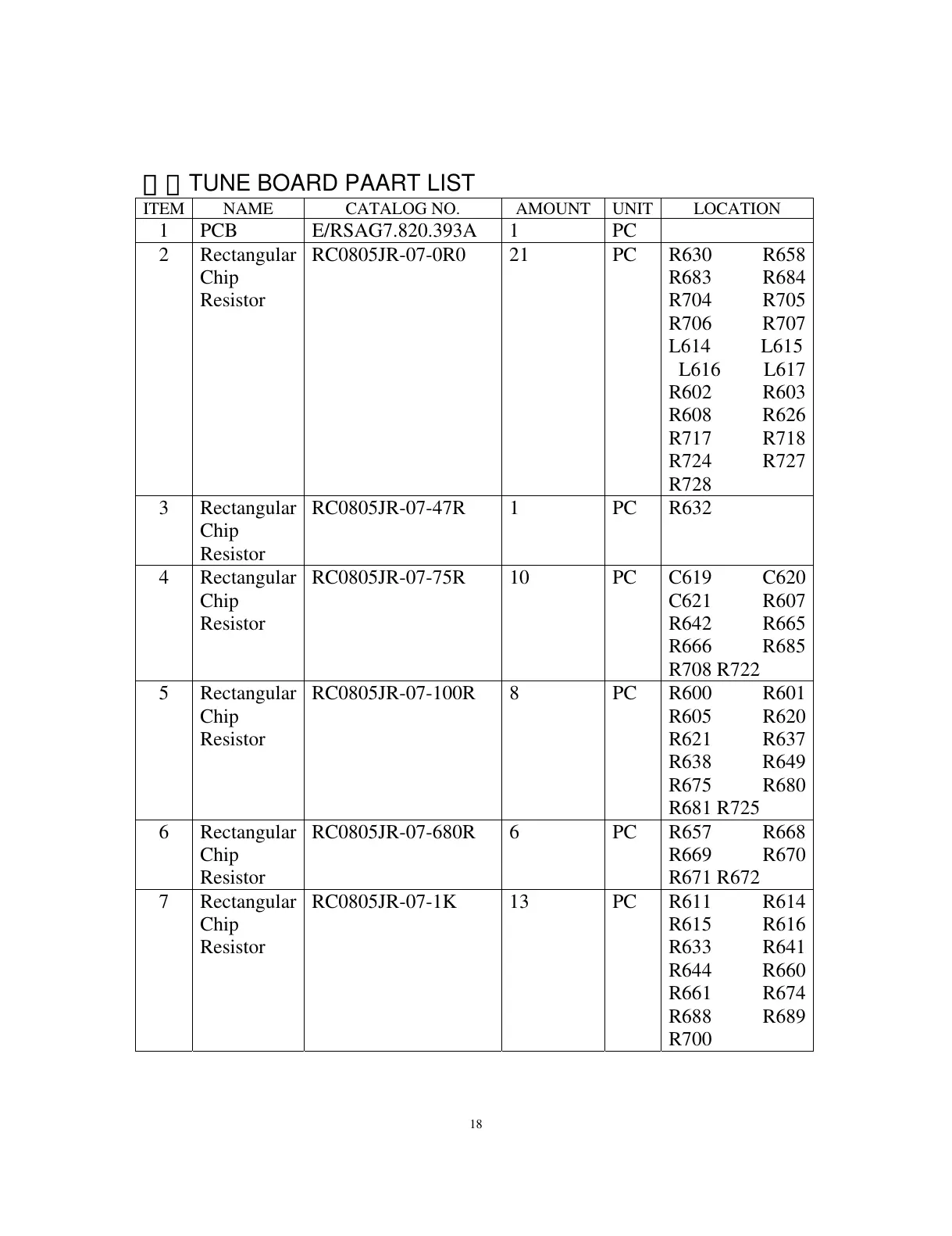

TUNE BOARD PAART LIST
ITEM NAME CATALOG NO. AMOUNT UNIT LOCATION
1 PCB E/RSAG7.820.393A 1 PC
2 Rectangular
Chip
Resistor
RC0805JR-07-0R0 21 PC R630 R658
R683 R684
R704 R705
R706 R707
L614 L615
L616 L617
R602 R603
R608 R626
R717 R718
R724 R727
R728
3 Rectangular
Chip
Resistor
RC0805JR-07-47R 1 PC R632
4 Rectangular
Chip
Resistor
RC0805JR-07-75R 10 PC C619 C620
C621 R607
R642 R665
R666 R685
R708 R722
5 Rectangular
Chip
Resistor
RC0805JR-07-100R 8 PC R600 R601
R605 R620
R621 R637
R638 R649
R675 R680
R681 R725
6 Rectangular
Chip
Resistor
RC0805JR-07-680R 6 PC R657 R668
R669 R670
R671 R672
7 Rectangular
Chip
Resistor
RC0805JR-07-1K 13 PC R611 R614
R615 R616
R633 R641
R644 R660
R661 R674
R688 R689
R700
