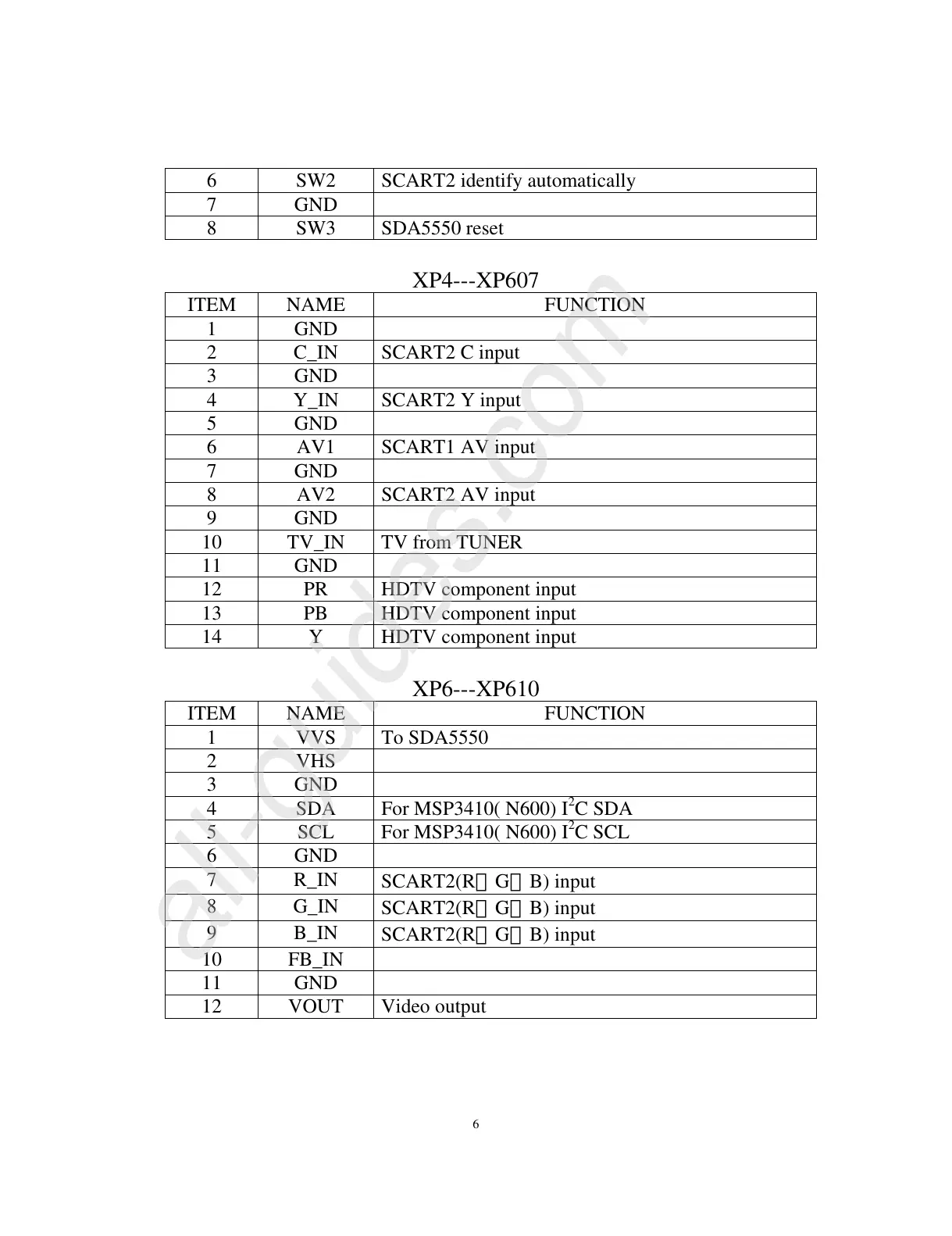

Hisense LCD3203EU - XP4-XP607; XP6-XP610

6
6 SW2 SCART2 identify automatically
7 GND
8 SW3 SDA5550 reset
XP4---XP607
ITEM NAME FUNCTION
1 GND
2 C_IN SCART2 C input
3 GND
4 Y_IN SCART2 Y input
5 GND
6 AV1 SCART1 AV input
7 GND
8 AV2 SCART2 AV input
9 GND
10 TV_IN TV from TUNER
11 GND
12 PR HDTV component input
13 PB HDTV component input
14 Y HDTV component input
XP6---XP610
ITEM NAME FUNCTION
1 VVS To SDA5550
2 VHS
3 GND
4 SDA For MSP3410( N600) I
2
C SDA
5 SCL For MSP3410( N600) I
2
C SCL
6 GND
7 R_IN
SCART2(R
、
G
、
B) input
8 G_IN
SCART2(R、G、B) input
9 B_IN
SCART2(R、G、B) input
10 FB_IN
11 GND
12 VOUT Video output
