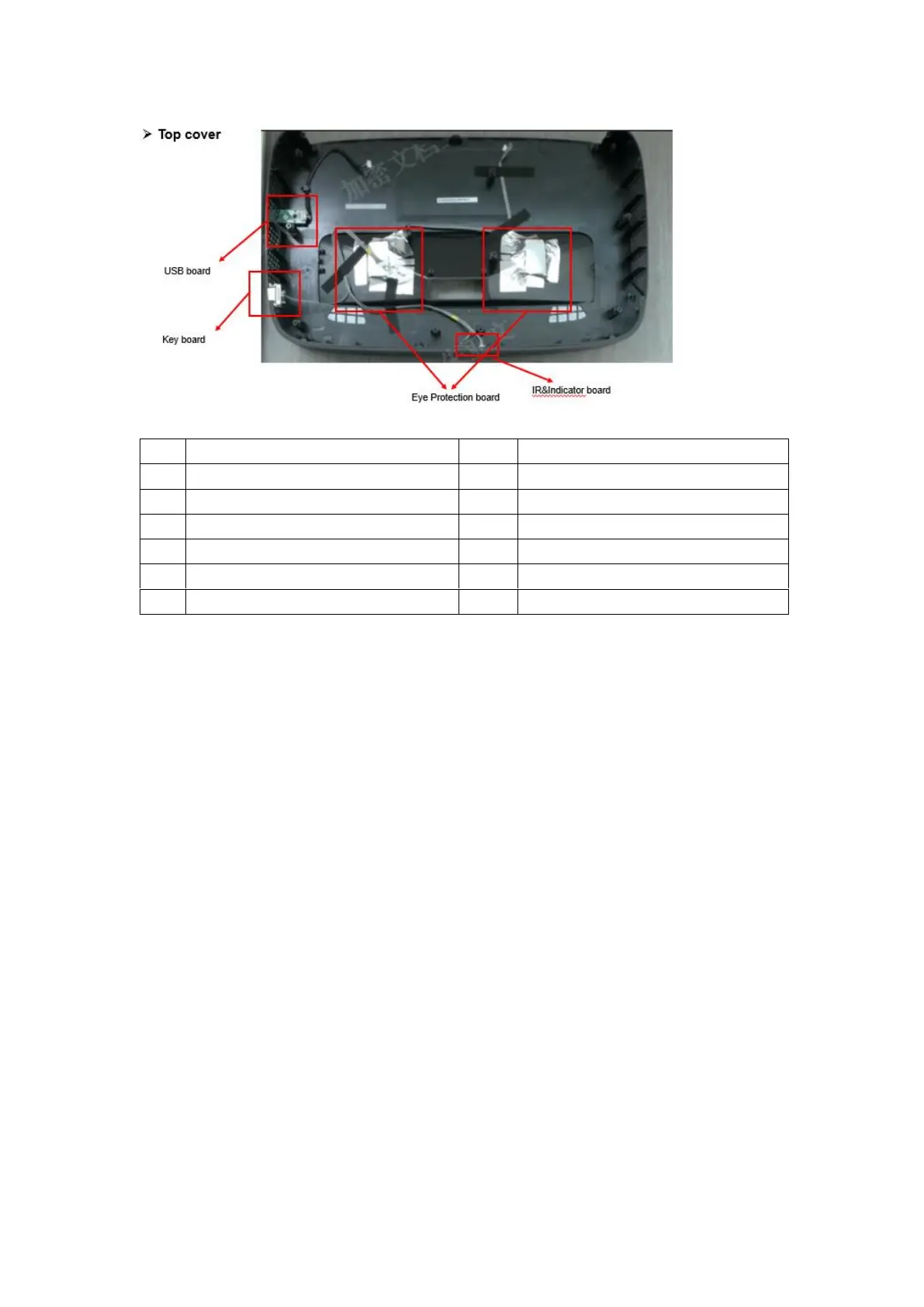

Hisense PL1HE Series Service Manual

7
NO.
Part
NO.
Part
1
Display board (including software)
7
DMD board
2
Main Board (including software)
8
Indicator board&IR board Assembly
3
Power Board
9
Terminal adapter board
4
Key board
10
Fan conversion Board
5
Right Eye Protection Board
11
USB board
6
Left Eye Protection Board
12
WIFI Board
4. Factory/Service OSD Menu and Adjustment
4.1 How to enter the Factory Menu
With user’s RC
(1) Power TV on
(2) Press button on the RC then call up “Menu” option.
(3) Move and “ok “button on RC to select Setting-> Sound->Advanced setting
-> Balance
(4) On the Balance, input figure 1->9->6->9 in sequence on RC.
Note: It is important to remember that the hand fingers can’t shield the RC
emitter diode.
(5) Call up a “M” on the left-top of TV, then press button again, the Factory
menu appear then
(6) DC power off and DC power on the TV, which can exit Factory OSD.
4.2 Factory OSD Menu
Factory OSD menu list: if you want to learn more about TV, you’d better read it
but would not adjust the value please. The Factory menu may be have
difference for diverse market and customer.
