Periodic Service
10-8
2. If it is below the “LOWER” mark add brake
fluid .

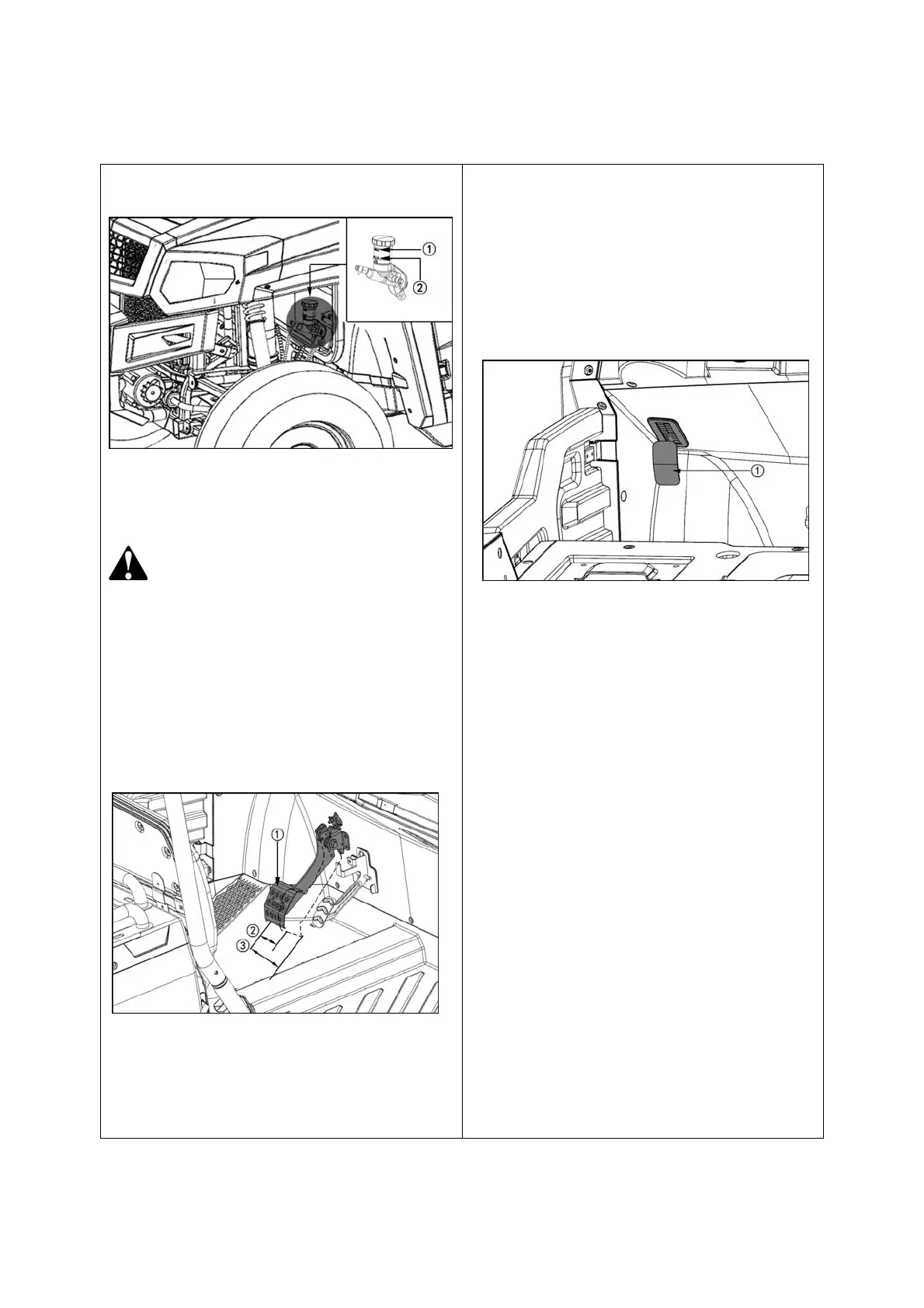

① OIL CUP ② LOWER
■ Checking brake pedal
CAUTION
TO avoid personal injury:
Stop the engine and chock the wheels
before checking brake pedal.
1.Inspect the brake pedals for free play and
smooth operation.
Adjust if incorrect measurement is found. (see
checking brake pedal in” EVERY 200
HOURS in PERIODIC SERVICE section)
① Brake pedal ② FREE TRAVEL
③ PEDAL STROKE
■ Checking parking brake
Pull the parking brake to apply the brakes
with the key switch in the "ON" position and
the parking brake indicator should come on.
To release the parking brake, depress the
parking pedal.
Make sure the parking brake warning lamp on
the display goes off when parking brake is
applied.
① Parking brake
■ Checking gauges meter and easy
checker™ lamps
1. Inspect the instrument panel for broken
gauges meter and warning lamps.
2. Replace if broken.
■ Checking head light turn signal light etc
1. Inspect lights for broken bulbs and lenses
2. Replace if broken
■ Checking seat belt and ROPS
1. Always check condition of seat belt and
ROPS attaching hardware before
operating vehicle.
2. Replace if damaged.
■ Checking joint boot
1. Check to see if the joint boots are
To Next Page
