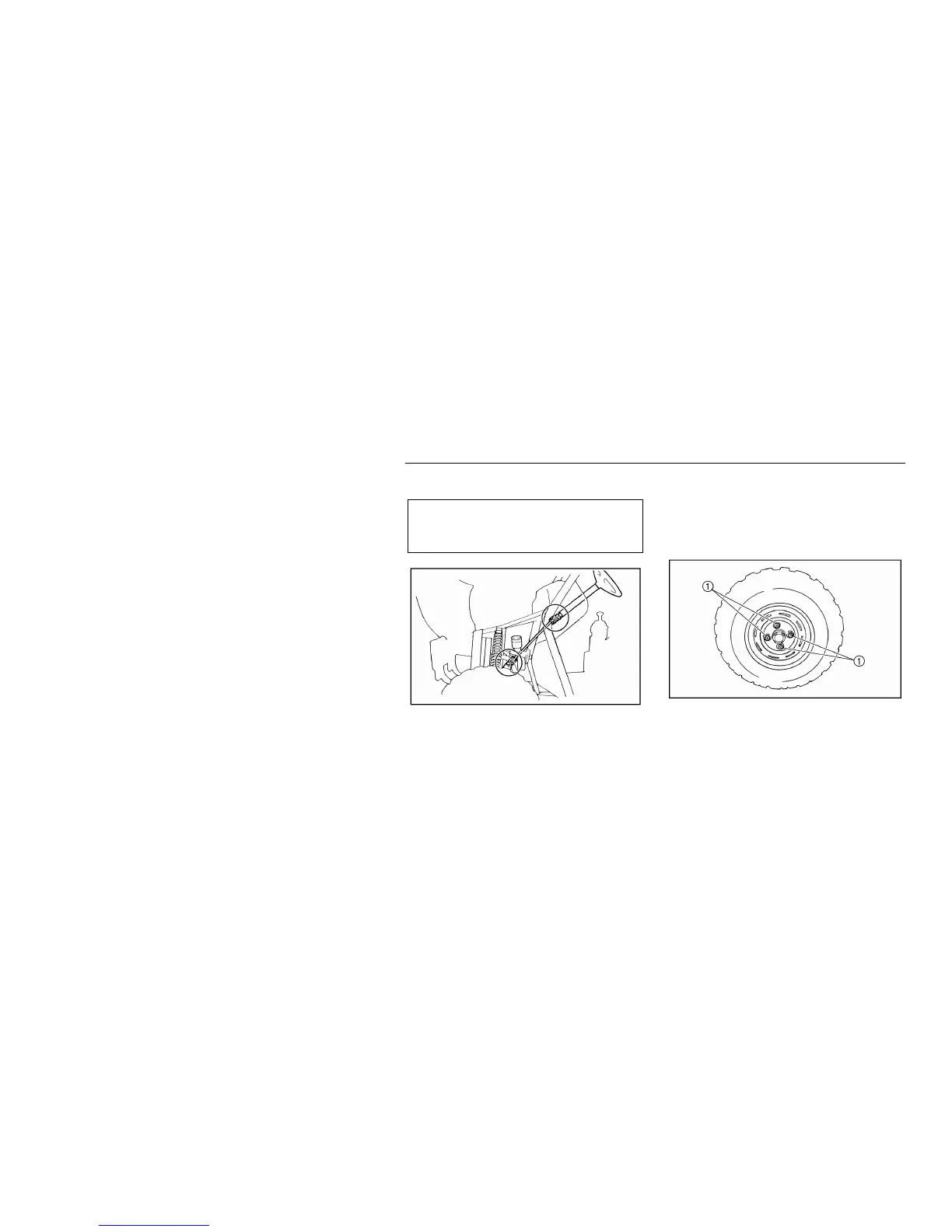

Periodic
Maintenance
and
Adjustment 8-41
Steering shaf
t lubrication
Lubricate the pivot points.
Recommended lubricant:
Lithium-soap-based
grease
(all-purpose
grease)
Wheel removal
Loosen the wheel nuts .
Elevate the vehicle and place a suitable
stand under the frame.
Remove the nuts from the wheel.
Remove the wheel.
1. Nut
（
×4
）
143
