8-40 Periodic
Maintenance
and
Adjustment

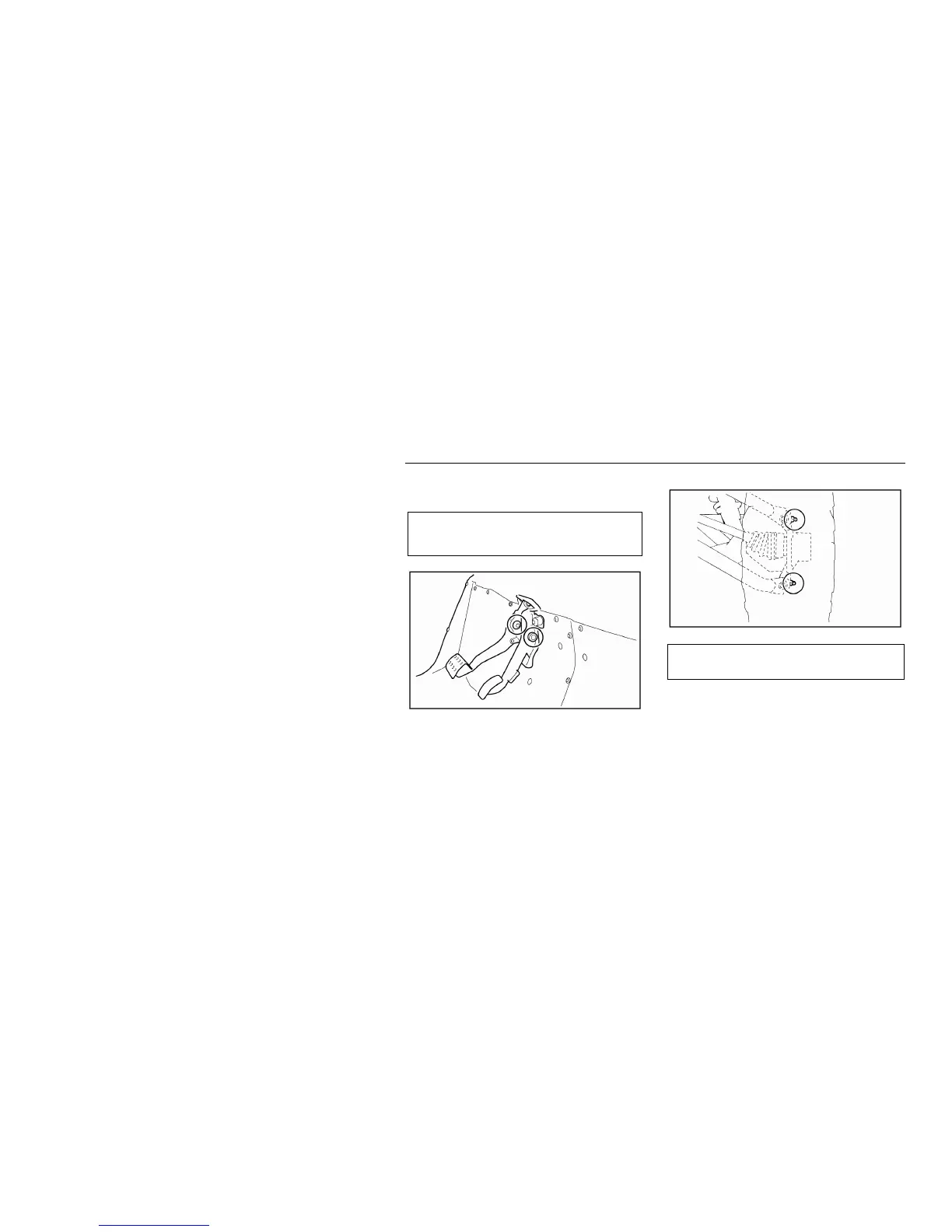

Brake pedal and accelerator pedal
lubrication
Lubricate the pivoting parts.
Recommended lubricant:
Lithium-soap-based
grease
(all-purpose
grease)
Rear knuckle upper and lower pivot
lubrication
Lubricate the knuckle upper and lower pivots
with a grease gun.
Recommended lubricant:
Lithium-soap-based grease
142
